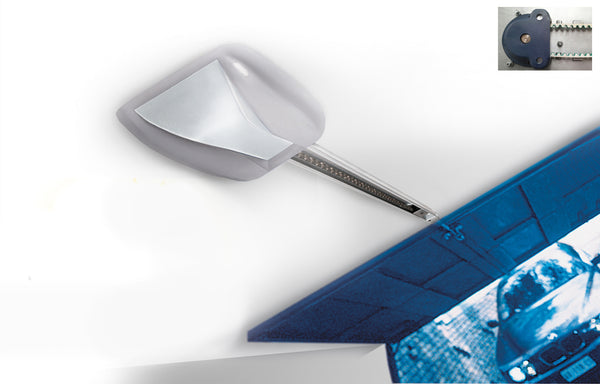

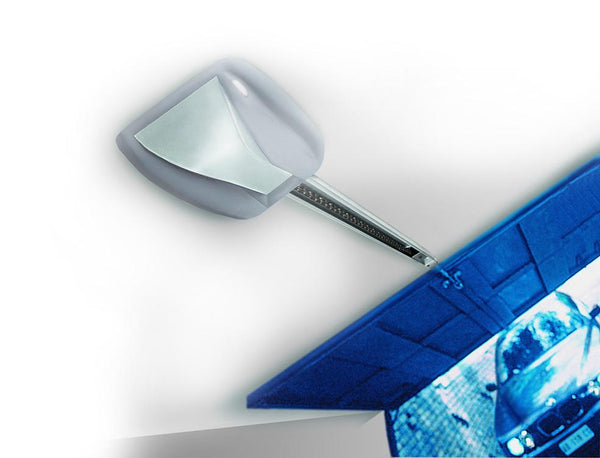

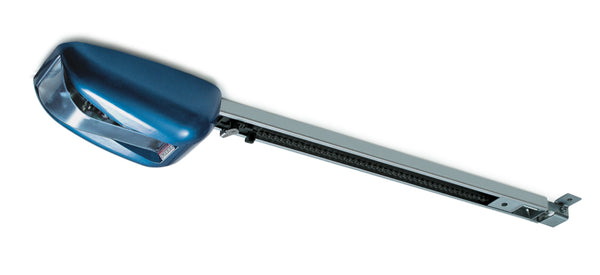

UP100

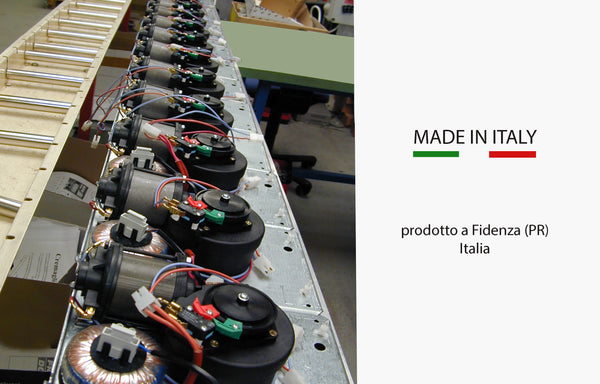

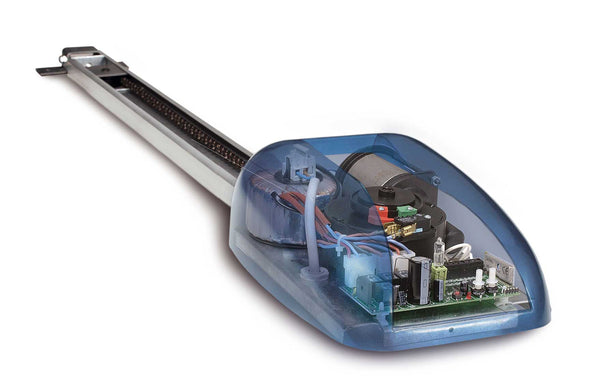

• Ducati 24V gear motor with toroidal transformer, electronic board CTH29S
• Built-in courtesy light and 433,92Mhz radio receiver

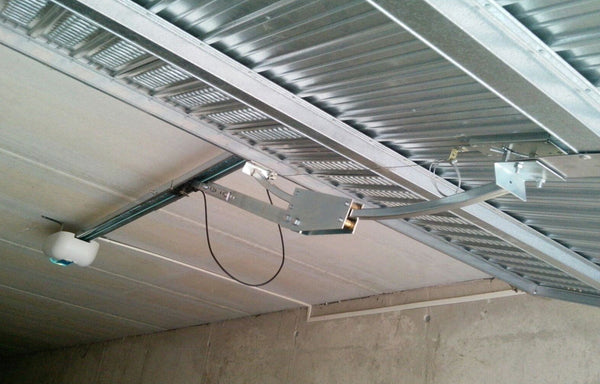

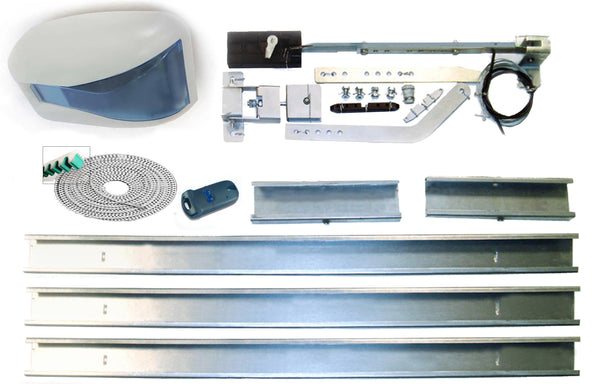

• 2,70 m long rail with pre-mounted fixing brackets & mounting components

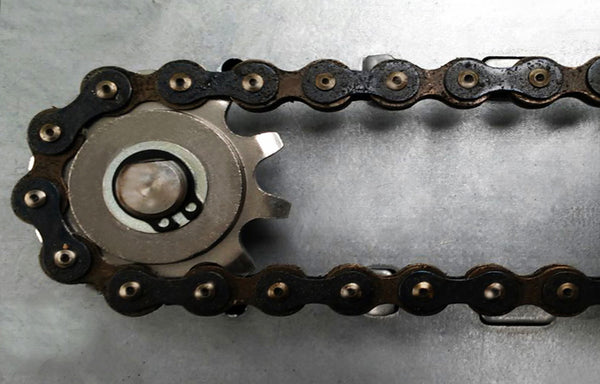

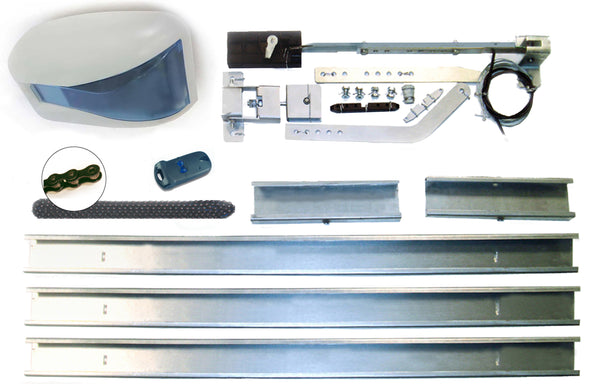

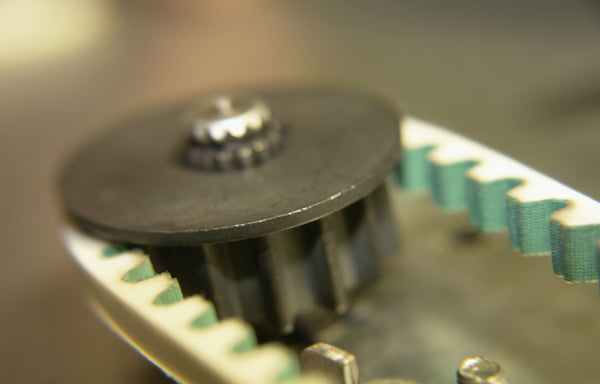

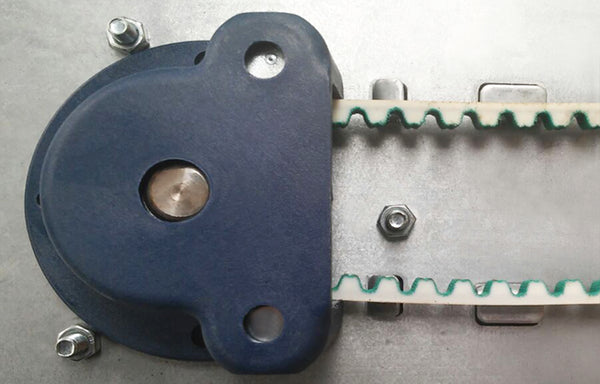

• Belt /chain drive ( select the desired variant)
• Manual release system from inside/ outside

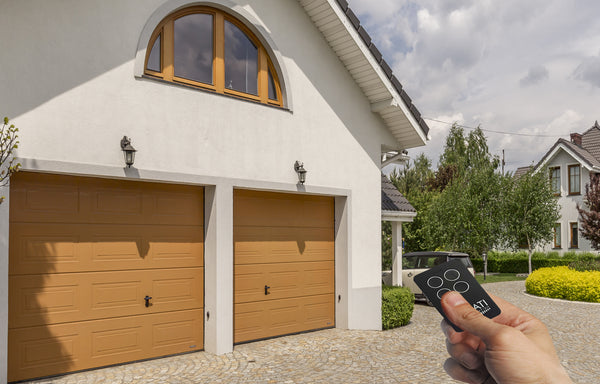

• 1 DUCATI rolling coded remote control
• Mounting instruction

• Stops intruders by securely locking the garage door when it is closed
• Self-learning programming with memorization of remote controls,
• Featuring electric limit switches to set the open & closed position
• SOFT STOP slow-downs speed  both in opening and closing phase

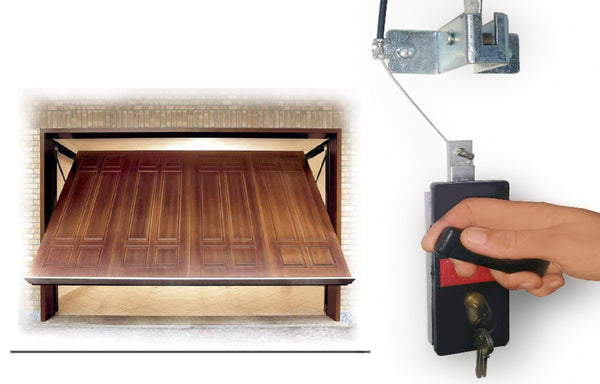

• In case of power failure you can easily manually release the system both from inside or outside your garage
• Motor power adjustment: you can adjust the motor power by simply turning a potentiometer
• ARS Automatic Reversal system reverse mouvement by obstacle detection to ensure maximum security
• Safety guaranteed by automatic amperometrical obstacle detection system: in case the door detects an obstacle it will reverse the movement. In compliance with European safety norms EN13241; EN12453
• Easy to be installed. 2,70 m long rail with pre-assembled mounting component.
• 30 sec courtesy light on board
• 2 working modes: Step by step (open-stop-close) or timerized automatic close with adjustable timer 1-100 seconds

The Professional Garage Door Opener, reliable, durable and powerful.

Working limits:

Up to 100 kg lifting power.

Door requirement:

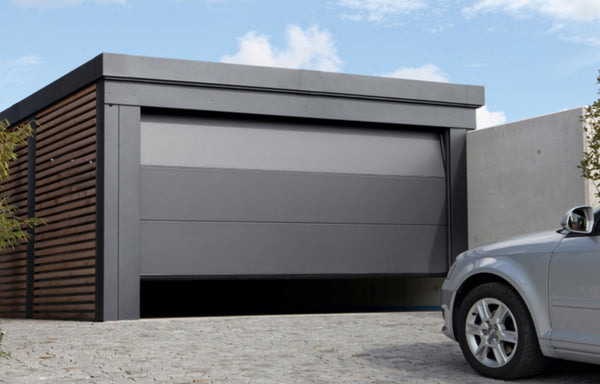

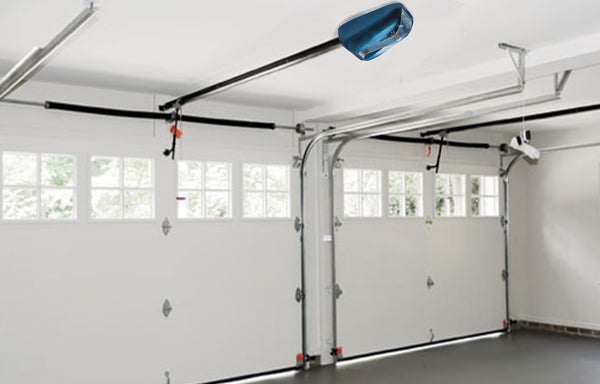

Sectional and spring balanced door up to 230m in height

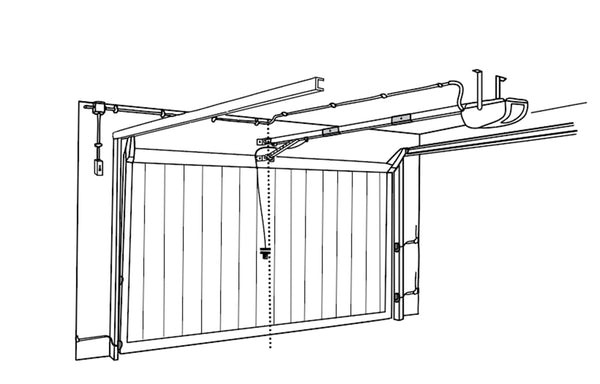

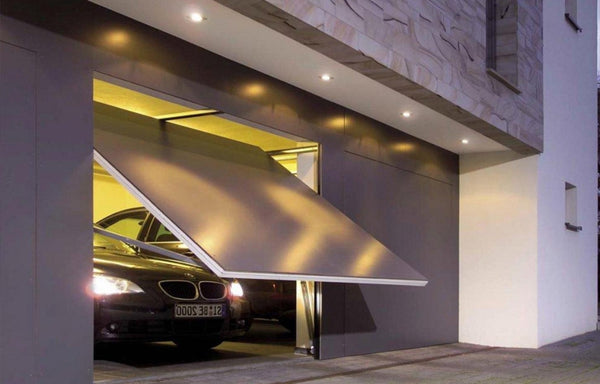

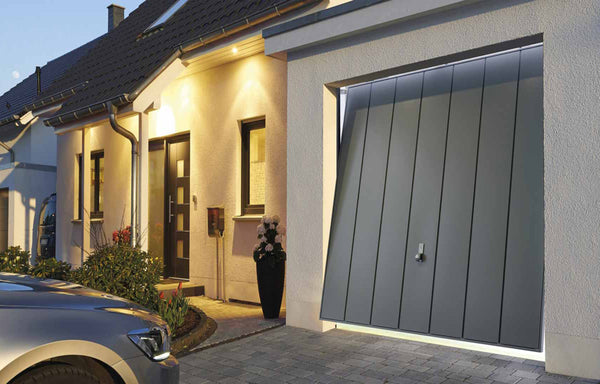

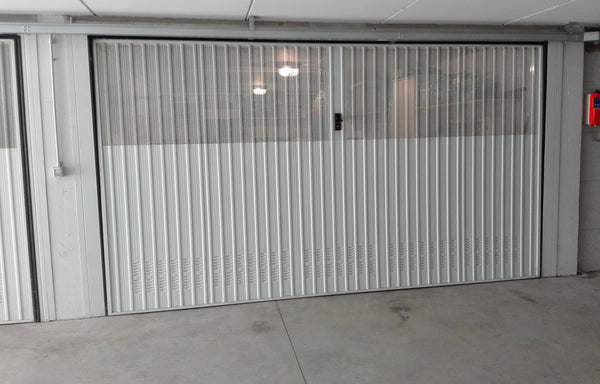

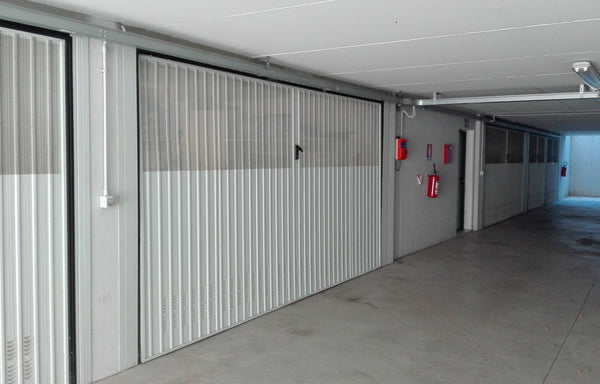

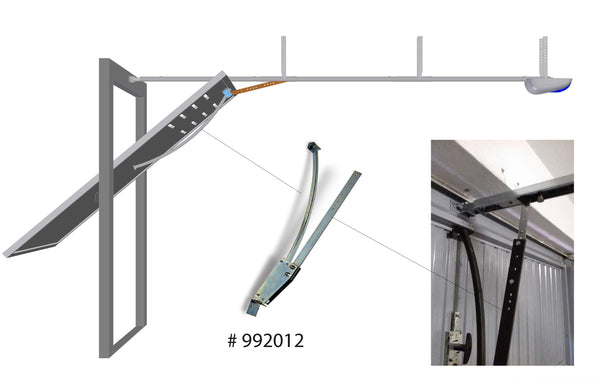

Counterweigh balanced doors up to 2,15m in heightrequires additional accessory  part: 992012

Higher doors ( up to 3m heigh) requires additional optional 70cm extention rail & chain  part: 992013 ( Warning externtion is only available for chain driven versions

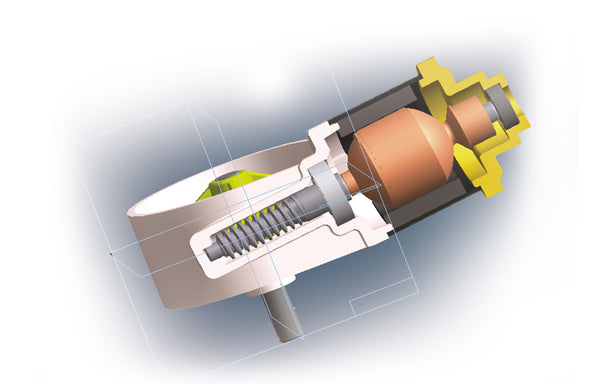

Features continuous cycle working DC motor.

Automatically reverses the door if detects any obstacle.

TECHNICAL DATA
