SW400

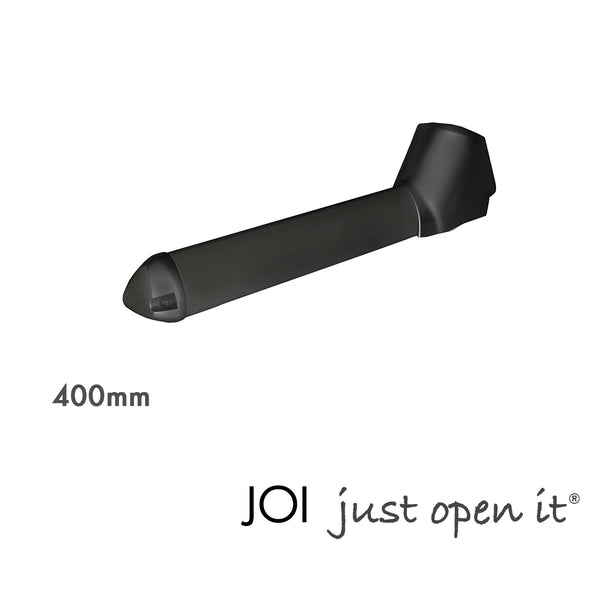

SW400 Swing Gate actuator with 400mm stroke ideal for gates up to 2m /6,5 ft length each leaf.
- 12V or 24V version available (24V version is recommended for heavy gates and SOFT STOP options)
- Integrated limit stops are available for easier installation in "FC" version
- With 400 mm stroke this actuator is ideal to be installed on small gates with small pillars

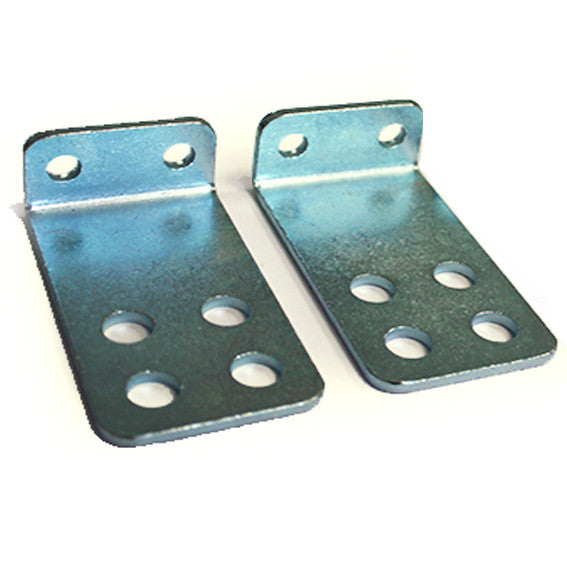

- This electromechanical irreversible actuator comes with 1m outdoor use cable H05RN-F 2 x 1mmq; set of fixing brackets and unlocking key for emergency manual release
- Actuator can be installed either on the right or on the left of the gate
- Ideal for intensive use in any climate
- The gate keeps automatically locked. The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary elecktro-locks for the final positions can be omitted for gates up to 2m
- 2 years warranty.
ELECTROMECHANICAL ACTUATOR SW400
Actuator made of durable materials. Each component is made in the ideal material to ensure quality , reliability in all weather conditions, long lasting performances and safety: our DC actuators ensures double electrical insulation

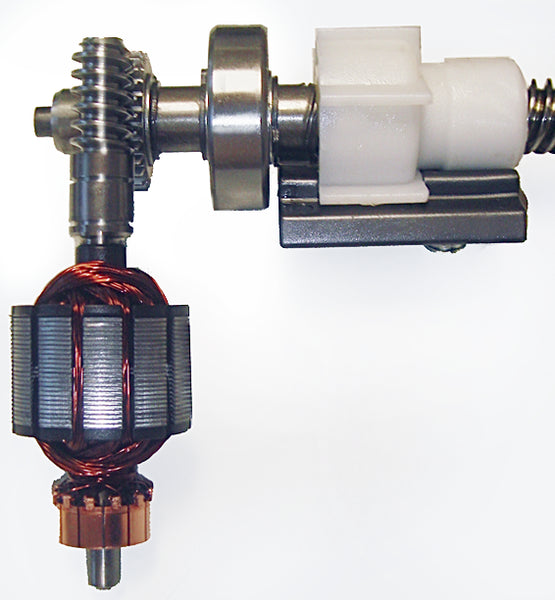

- PR80 steel 3 principles 20mm main screw
- Sinterized gears
- C40 steel worm screw machined and lapped by rolling machine
- Rotor made with double insulated copper Class H 200°C
- Extruded painted aluminium
- High strenght and double motor insulation: Nylon-glass integrated back fork guarantees double electrical insulation. Durable, withstands all weather conditions

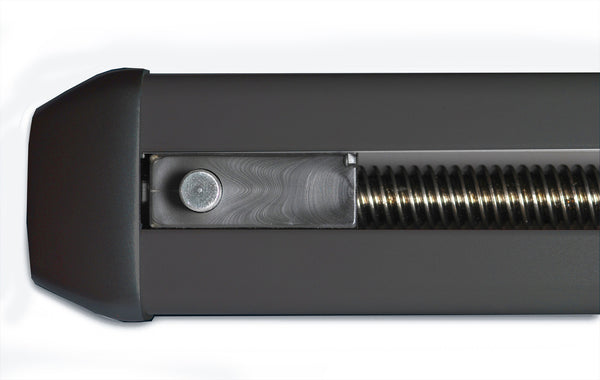

- Hostaform® three principles nut screw for a long lasting high-performance
|
|
|
| dc motor
|
60W (120W) |
| max pushing & power
|
1200N (2400N) |
| Stroke | 400mm |
| motor speed | 1,5 cm/sec (2cm/sec) |
| telescopic actuator | - |
| working cycles limit | continuous use |
| working temperature | -20°C/+50°C |
| max wing length | 2m/6,5 ft each leaf |
| max.wing weight | 200kg/400lb each leaf |
| max. opening angle | 120° |
| automatic wing lock | √ irreversible actuator |

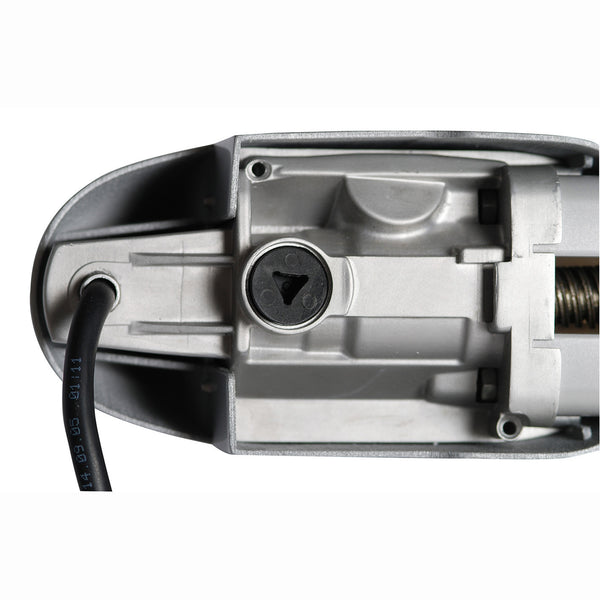

| manual release system | √ by triangular key |

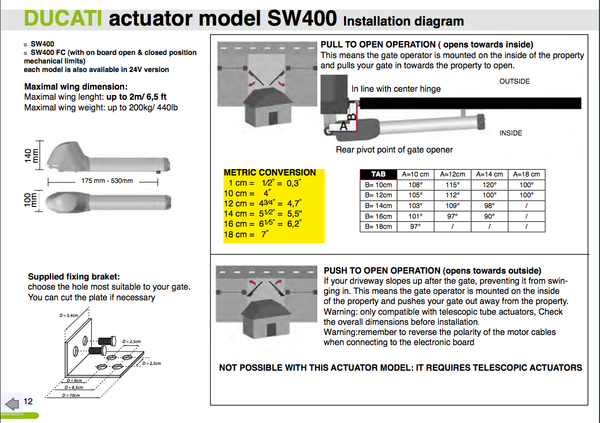

| Max "C" measure /pillar dimension (see pillar installation diagram) to install the actuator avoiding any masonry work on the pillar | 12 cm |
| Compatible with gate opening towards outside | NO |
NOTE:
the actuator will stop by amperometrical detection system: it therefore requires mechanical limits to be installed on the ground to stop the gate wing in the open and closed position. Special "FC" version are featured with on-board mechanical limits for the open wing position. On-board limits avoids limits ( stopper) to be fixed on the ground.
CONTROL BOARD COMPATIBILITY
12V version actuator is compatible to all DUCATI's 12V swing gate opener control boxes
24V version actuator is compatible to all DUCATI's 24V swing gate opener control boxes
