HC612

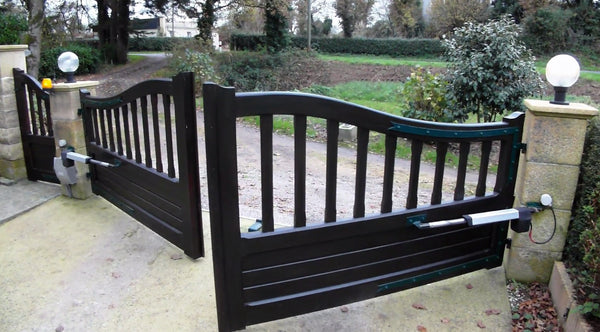

HC 612 Swing Gate TELESCOPIC actuator with 600mm extra long stroke ideal for gates up to 5m /16 ft length each leaf.

• 12V or 24V version available (24V version is recommended for heavy gates and SOFT STOP options)
• Integrated limit stops are availables for easier installation in "FC" version ( only for open position, while closed position of the gate still requires a stopper fixed to the ground)

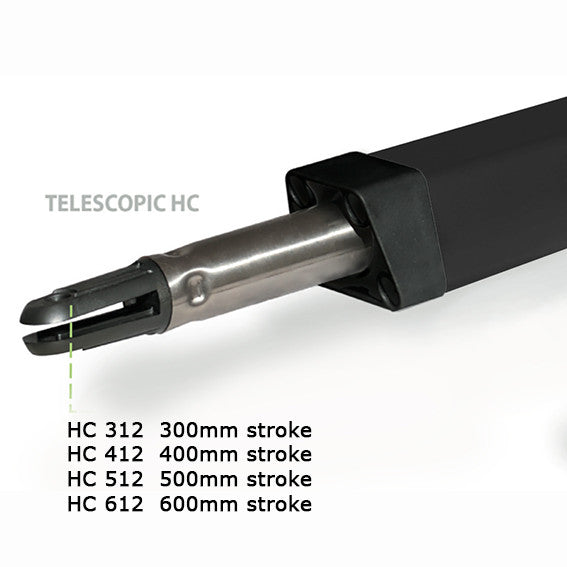

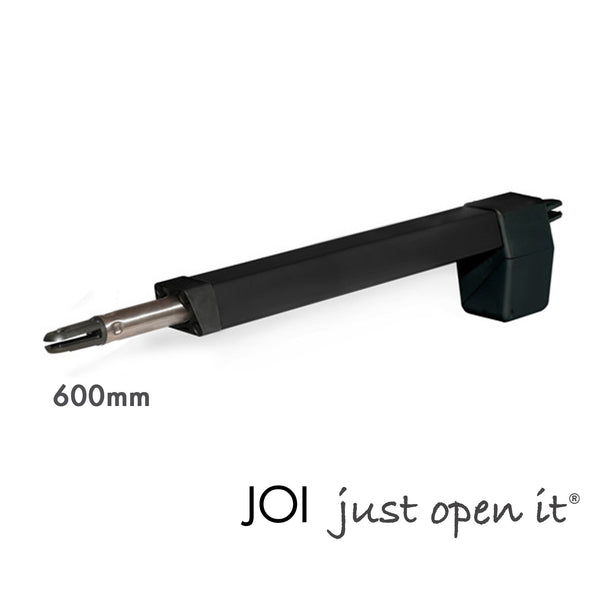

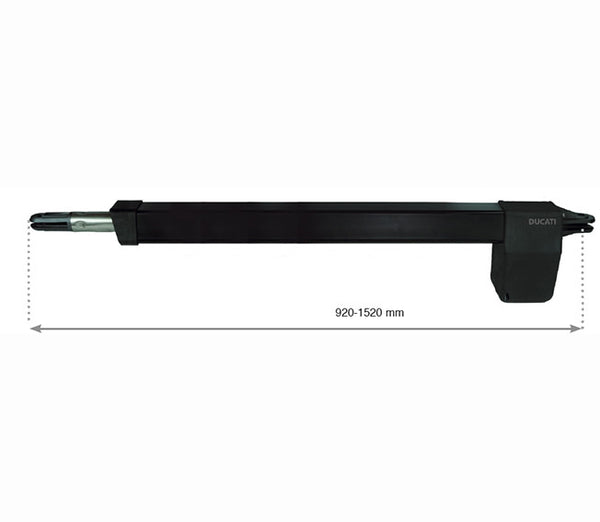

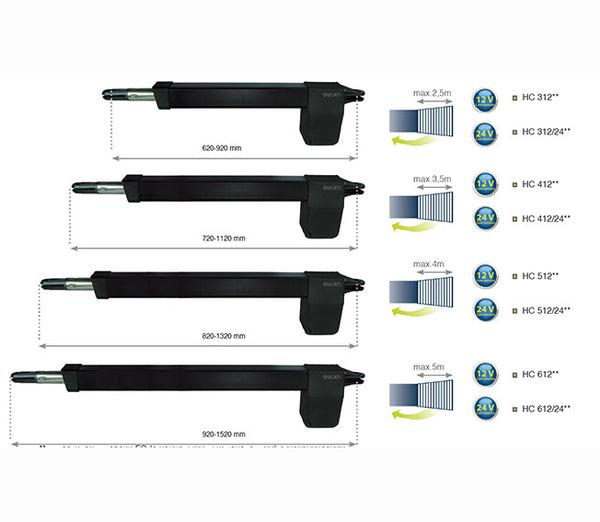

• Telescopic 600 mm extra long stroke  actuator is ideal to be installed on  big gates or large pillars

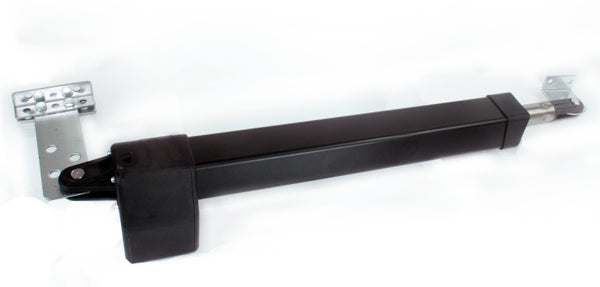

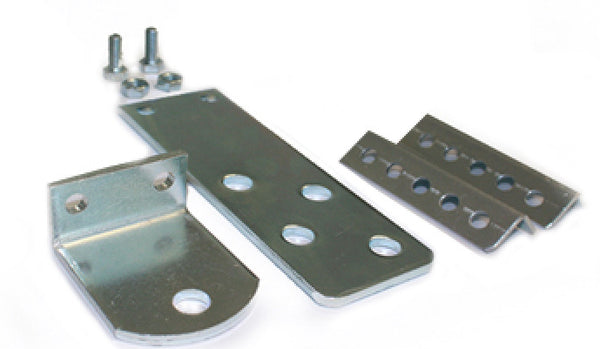

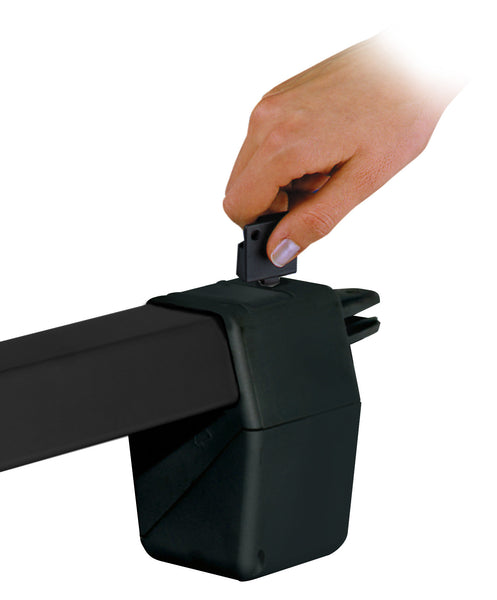

• This electromechanical irreversible actuator comes with 1m outdoor use cable H05RN-F 2 x 1mmq; set of fixing brackets and unlocking key for emergency manual release
• Vintage design with unsurpassed reliability
• Massive motor-gear unit for reliable power transmission

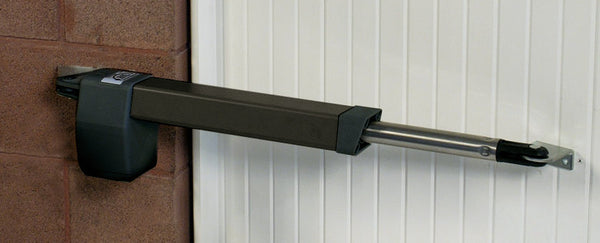

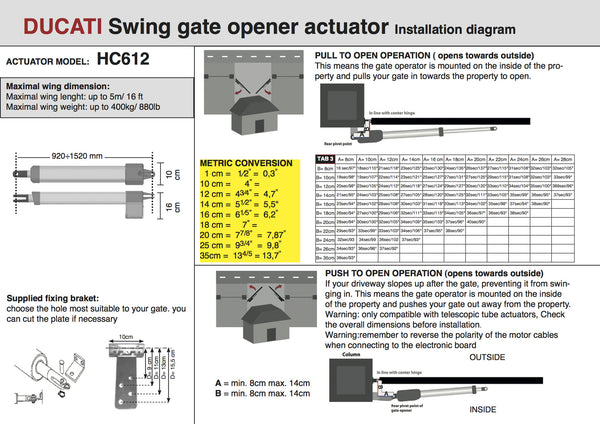

• Actuator can be installed either on the right or on the left of the gate and can also open towards outside the property
• Ideal for intensive use in any climate
• The gate keeps automatically locked.The self-locking properties of the spindle increase the protection against a dangerous and un-autorised “pressing” of the gate and the otherwise necessary elecktro-locks for the final positions can be omitted but recommended for wings measuring over 2,8m
• The HC actuators are nowadays development of the original and countless imitated project dated 1986, made by Lorenzo Ducati, a pioneer in gate automation
• 2 years warranty.
• Color:  black (special color edition 2016).

TELESCOPIC ELECROMECHANICAL ACTUATOR HC 612

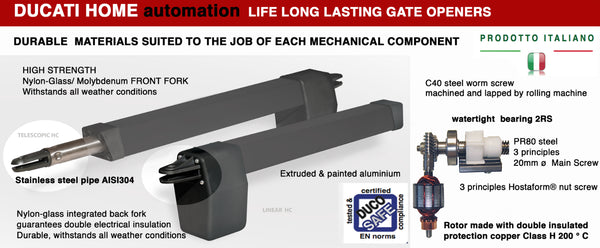

Actuator made of durable materials. Each component is made in the ideal material to ensure quality , reliability in all weather conditions, long lasting performances and safety: our DC actuators ensures double electrical insulation

• Stainless steel pipe AISI 304
• PR80 steel 3 principles 20mm main screw
• Sinterized gears

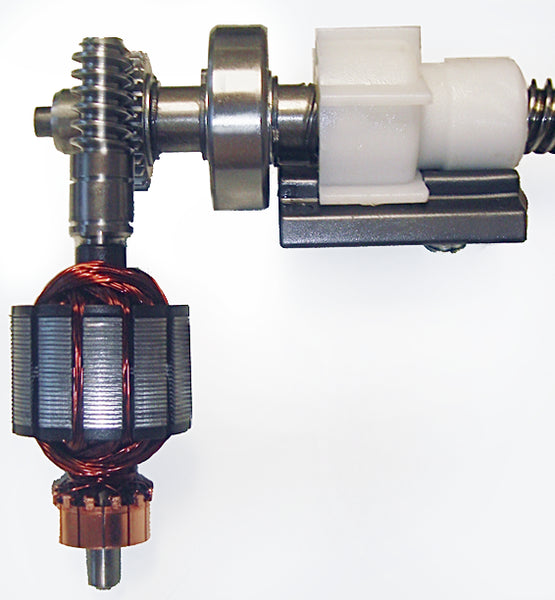

• C40 steel worm screw machined and lapped by rolling machine
• Rotor made with double insulated copper Class H 200°C
• Extruded painted alluminium

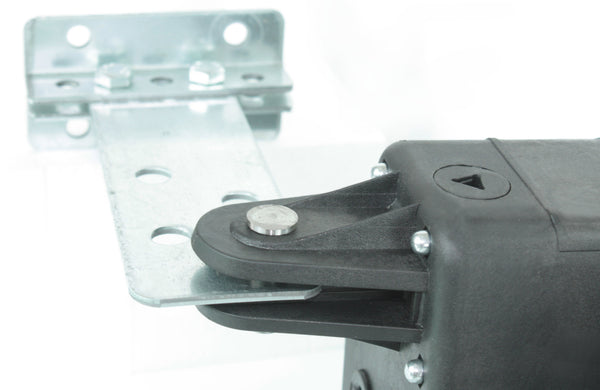

• High strengh and double motor insulation: Nylon-glass integrated back fork guarantees double electrical insulation. Durable, withstands all weather conditions
• Hostaform® three principles nut screw for a long lasting high-performance
