HC619 MONO

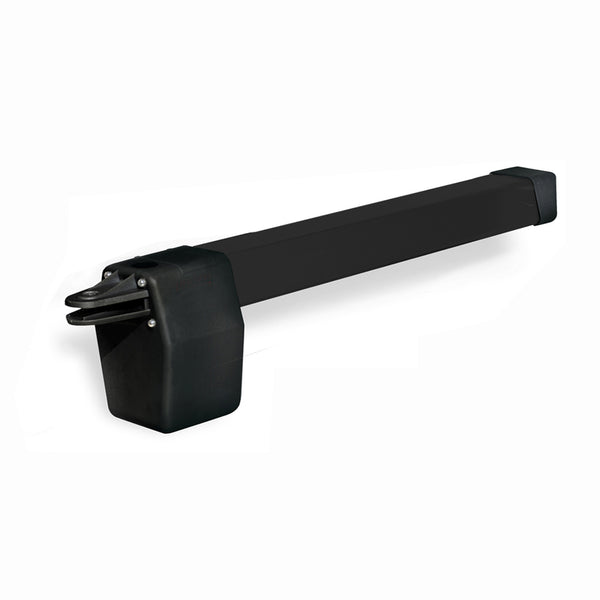

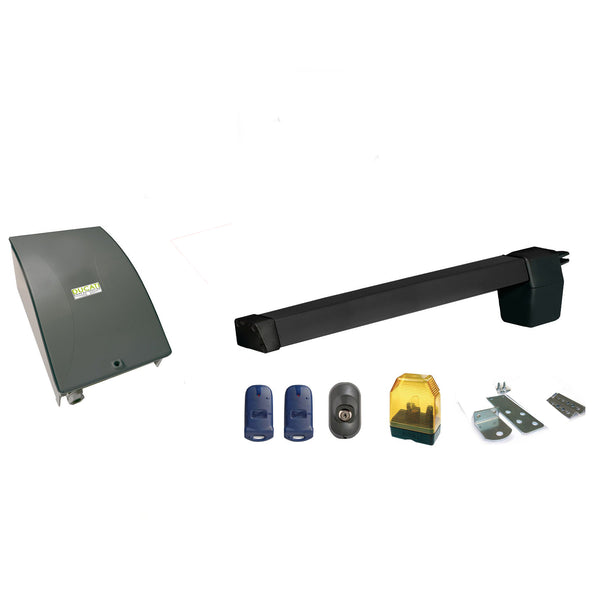

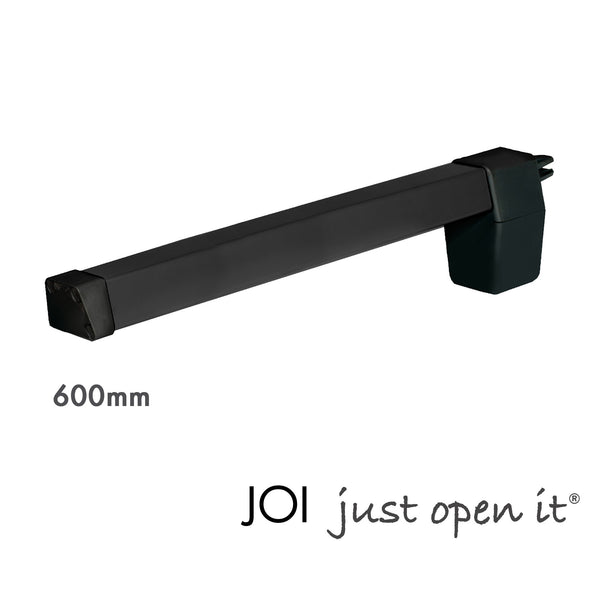

• 1x HC618- 600mm stroke electromechanical actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq
• set of actuator's fixing brackets

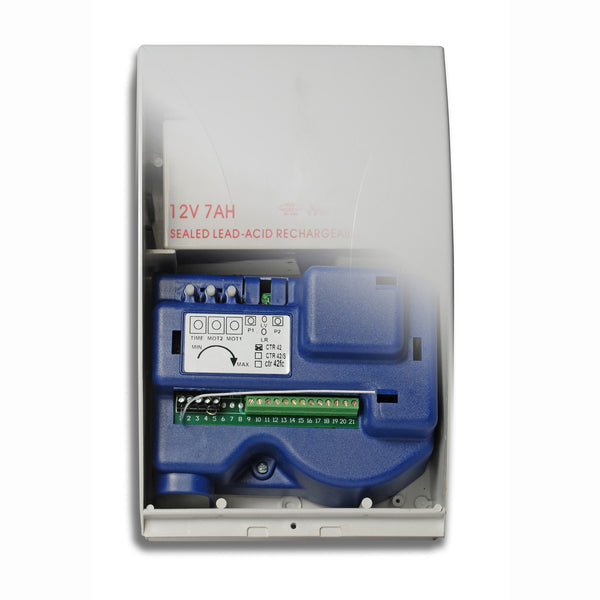

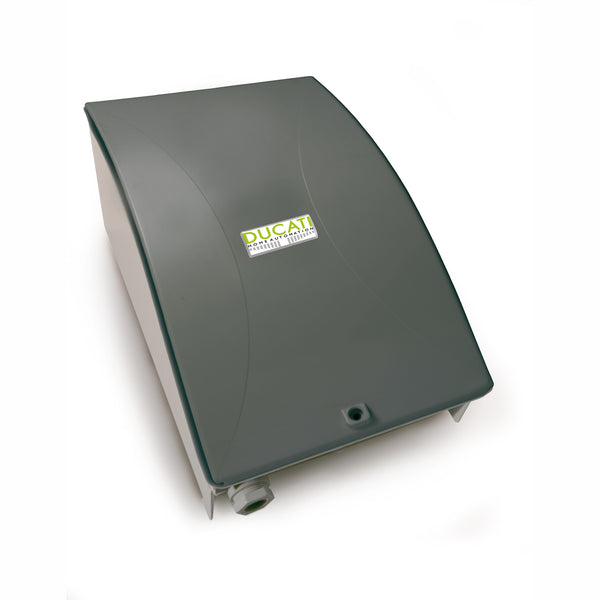

• 1x KONTROL 7855Rol  large control box with electronic board CTH42 , toroidal transformer, integrated radio receiver

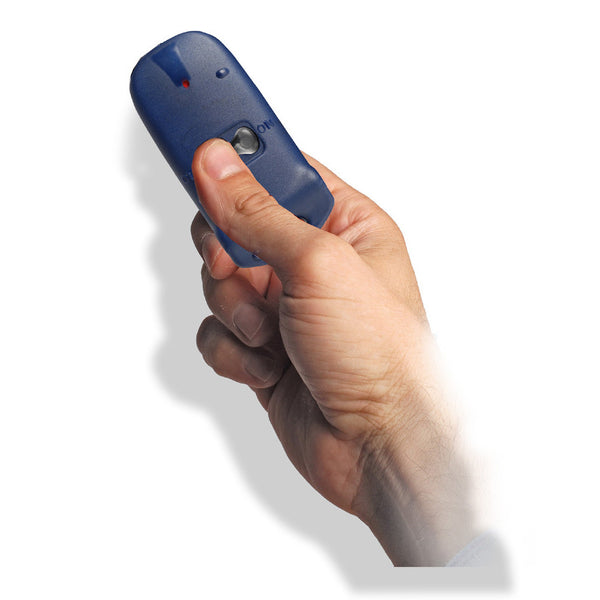

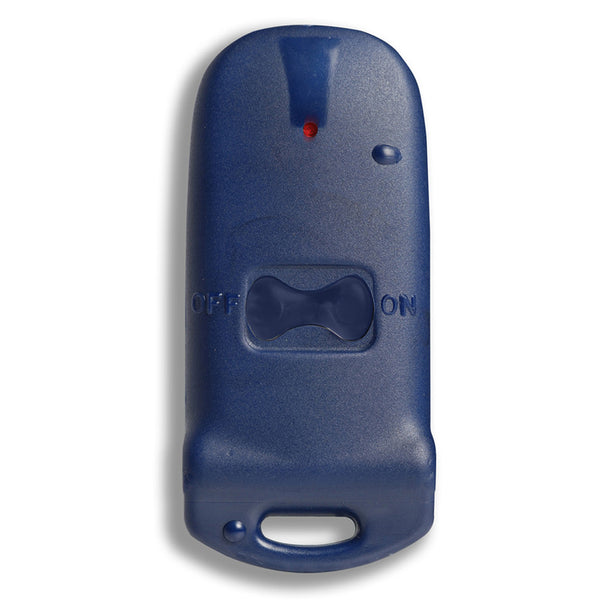

• 2x 6203Roll - 2 buttons 433,92 Mhz  rolling code radio transmitters

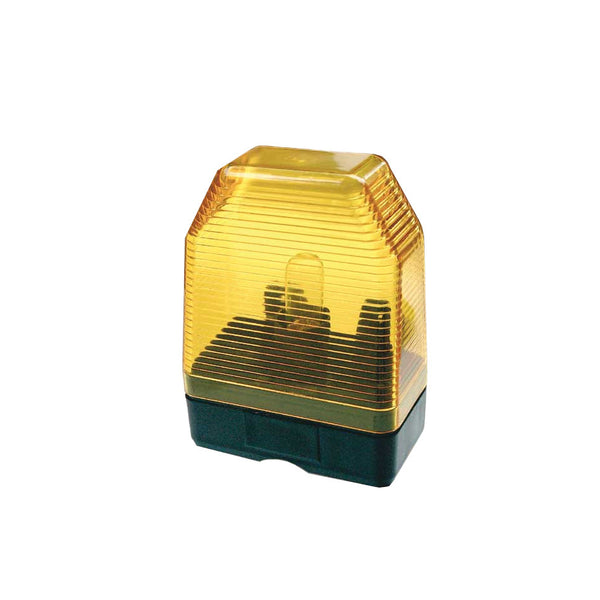

• 1x HC7500 - blinking light 12V ( 24V for 24V variant)
• 1x SW5000 - key switch
• 1x key for manual emergency release
• 1x instruction manual

• POWERFUL 600mm stroke electromechanical actuators
• Ideal for a safe, quick and easy installation: the system works in DC current and is electrocution risk-free.
• Possibility of connecting an external timed courtesy light (example: garden light)
• 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
• Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
• Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
• Easy self-storing of the remotes controls by pushing one button
• Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
• Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
• Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
• The gate is automatically locked in closed position (irreversibile system).
• Electro-lock is not needed, but recommended for wing longer than 2,8m each. This opener is compatible with ac 12V electric-lock ( WARNING: electrolock is not compatible in case the opener is powered by back-up battery)

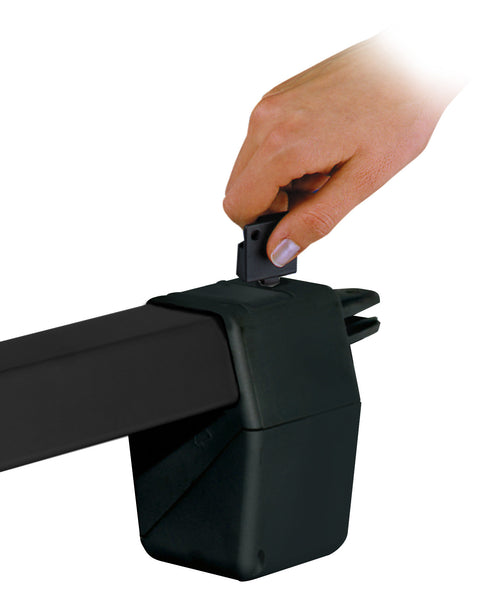

• Manual release system by universal triangular key
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

ACTUATOR  TECHNICAL DATA

ELECROMECHANICAL ACTUATOR HC618

NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC618 in "FC" version are featured with on-board mechanical limits for the open & closed  wing position.

CTH42 ELECTRONIC BOARD TECHNICAL DATA

CLICK HERE to download the general instruction manual

HC618 actuator installation diagram

CTH42 Manual electronic board

6203Roll remote control instructions
