Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors
CHOOSE PRODUCT VARIANT
€ 149.00EUR

Shipment/TAX are calculated to Check Out and depends on delivery address

  • Electronic board 12V for sliding gate opener SLIDE446 WARNING:This item is since o cober 2022 no longer available and it will be replaced byan automatic upgrade to elecronic board CTH43 that also features SOFT STOP. WARNING:If the board is used with solar panel power supply, please indicate it in the order notes as you will be supplied with a CMBAT KEMO charging power supply. WARNING: If the board is powered by the mains plus an emergency buffer battery, report it because the CMBAT module will be supplied. WARNING: If it is powered only by the mains without the battery, no charging module is needed. It should be noted that for all customers who purchase this item as a spare part for the CTH46 board, any modules will be added free of charge, so as to offer you the spare part with the same functions
  • Stops on on magnetic limits detection.

DUCOSOL technology; low consumption system with integrated battery charger & solar panel management: Versatile, can operate by 3 type of power supply without any additional module required.

  • 1) A.C. 110/230V 60/50Hz;
  • 2) By emergency battery. Up to 5 days autonomous use in case of power failure
  • 3) By solar panel. No extra modules needed. Up to 40 daily cycles guaranteed even in poor light environment.

DUCO SAFE technology Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 200

ASR (Automatic Reversal System)

Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.


MOTOR COMPATIBILITY:

Compatible with  12V Sliding gate opener model SLIDE446


ACCESSORIES COMPATIBILITY:

  • DUCATI's rolling coded remote controls
  • key switch or and any switch button / loop detector with NO contact (normally open contact)
  • 12V photocells NC contact
  • 12V 10W max bulb blinker
  • External aerial antenna
  • 12V battery
  • 12 V min. 10W photovoltaic solar panel
  • GSM 996 module to operate your gate by mobile phone
  • GSM INTERCOM 1096 for both intercom communication directly on your mobile phone and to operate your gate by mobile phone)

  • Features 2 working mode options: Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open & push to close)
  • Easy self-storing of the remotes controls by pushing one button
  • Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
  • Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing only) this feature can be controlled by remote control or switch button
  • on board integrated photovoltaic solar panel power supply management (no extra modules needed) the solar panel can be directly wired to the CTH46 electronic board
  • on board integrated battery charge management (no extra modules needed) the battery can be directly wired to the CTH46 electronic board
  • The CTH46 is designed to be powered by standard solar panels and batteries that are easily available on the market so it does not impose costly standard battery use as we do not impose to our customers customized expensive batteries.
  • CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request.
  • Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing. In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
  • Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
  • Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

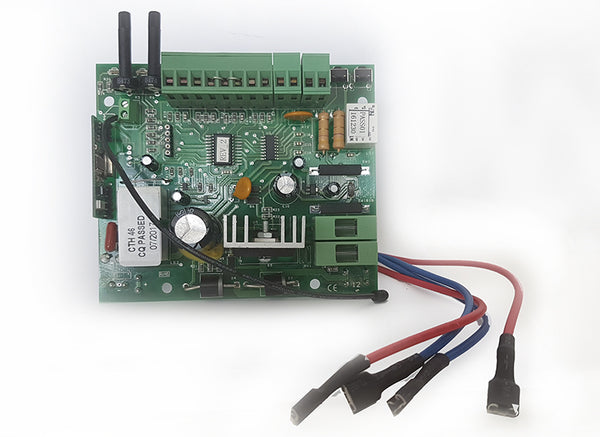

CTH46 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

CTH46 ELECTRONIC BOARD TECHNICAL DATA

Main AC power supply 230V (110V on demand)
System Operating Voltage 12V
Backup-up battery & power supply
Solar module power supply
Stand-by consumption 0.007A
Protection fuse on board
Transformer protection fuse 0.8A T(1.2A T)
Toroidal transformer wattage 105W
System operating voltage 12V
Radio receiver 2 channels rolling code
Radio codes storage capacity 20
Radio transmission protocol DUCATI rolling code 433MHz
Radio remote codes learning self-learning
On board antenna
Input external antenna
Automatic closing pause time √ adjustable by trimmer 1-100 sec
DUCOSAFE Safety obstacle detection system (entrapment protection)
Motor power adjustment by potentiometer
ARS automatic reverse system on obstacle detection
SOFT STOP Double speed with soft stop -
FAST extra speed motor -
Electric Limits √ magnetic
Safety photocells input √ NC
START operating cycle (pedestrian cycle) contact NO
START operating cycle (pedestrian cycle) contact NO
Emergency STOP contact √ NC
Blinker output 12V 10W
battery charger √ on board
Battery input √ Direct wiring
Low battery indication by flashing light blinker
Solar panel input (solar panel management on board)
LED to indicate power ON
