Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors
CHOOSE PRODUCT VARIANT
€ 469.00EUR

Shipment/TAX are calculated to Check Out and depends on delivery address

  • This 24V dc gate opener package is ideal for medium up to heavy duty residential or commercial sliding gates up to 800kg
  • Features Soft Stop, automatic reverse system, safety obstacle detection system
  • Magnetic end limits
  • 2 remotes, blinker, key switch and 4 m rack are included

SLIDE 843

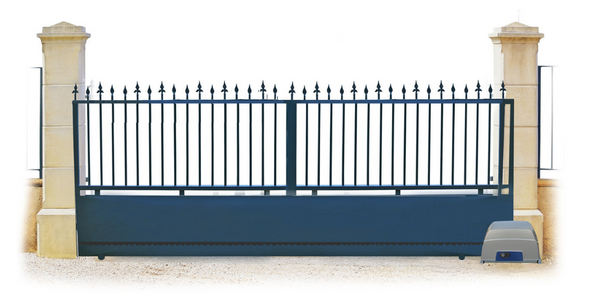

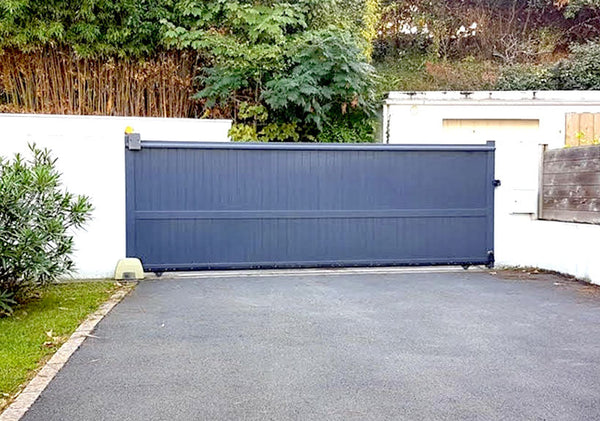

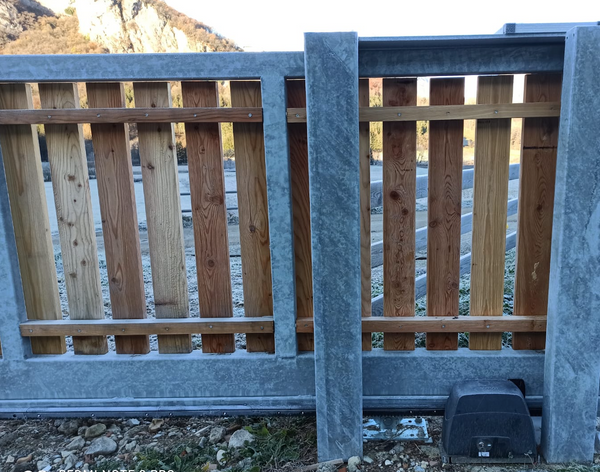

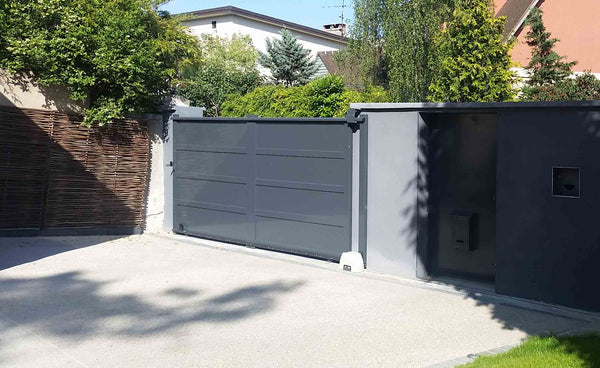

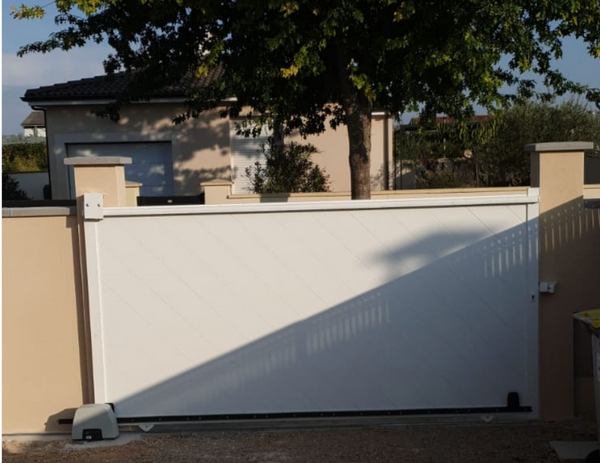

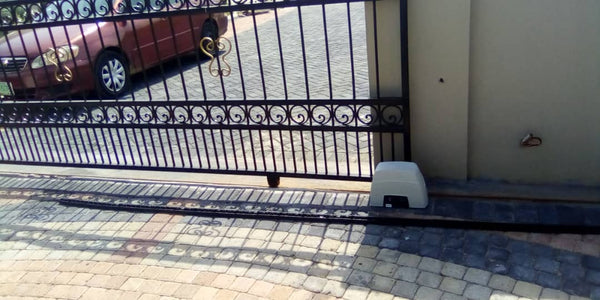

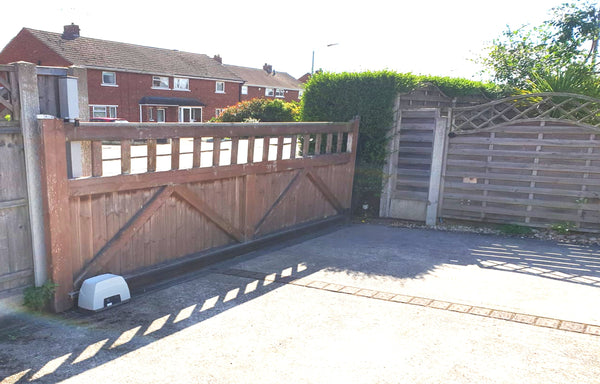

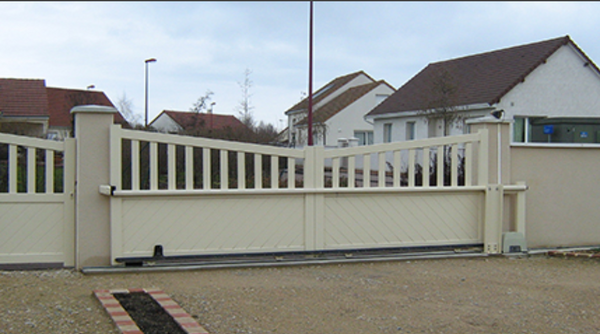

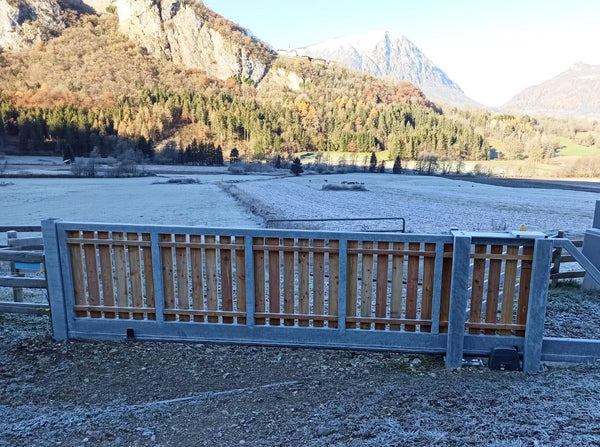

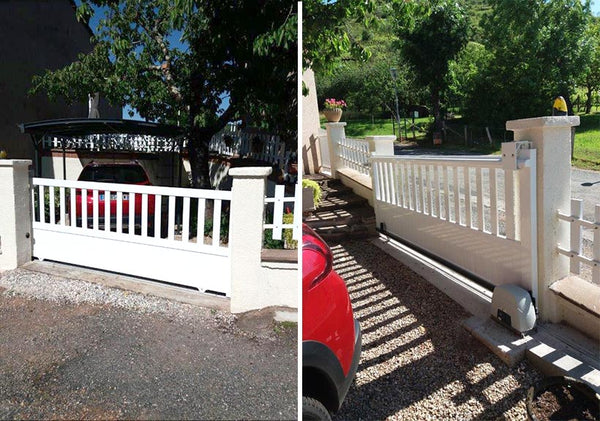

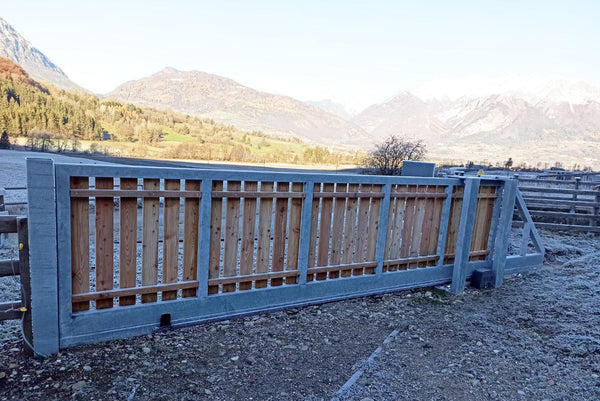

24V dc electromechanical sliding gate opener Ideal for large medium-duty up to heavy-duty residential or commercial gates weighting up to 800kg

4m racks are included, an additional rack can be added as an optional accessory in case of a gate longer than 4m. Ensures long-lasting performances in all weather conditions.

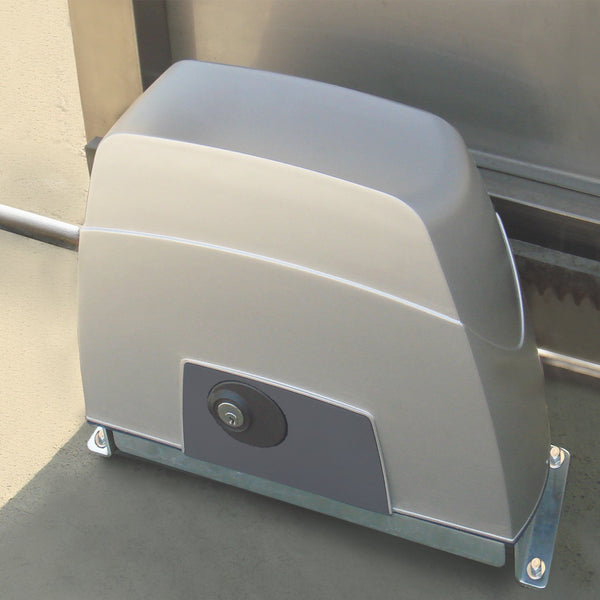

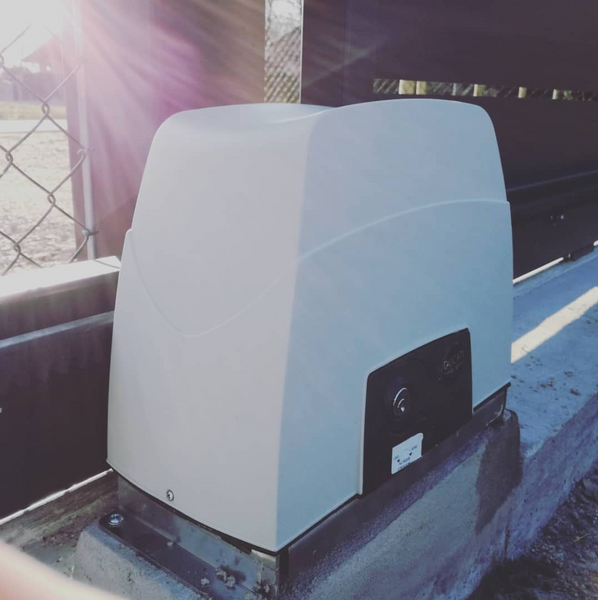

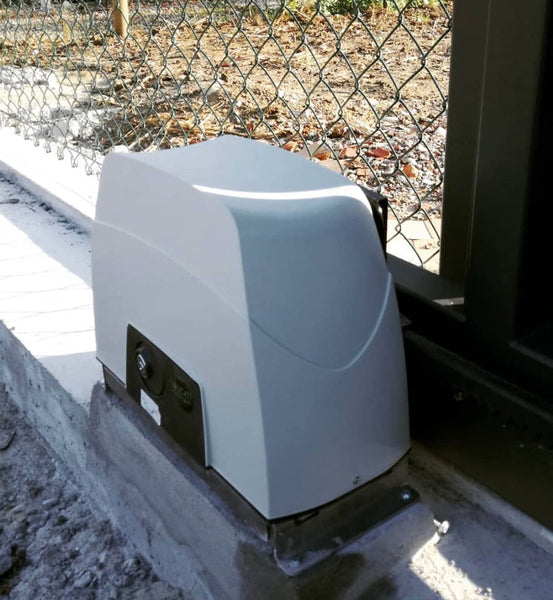

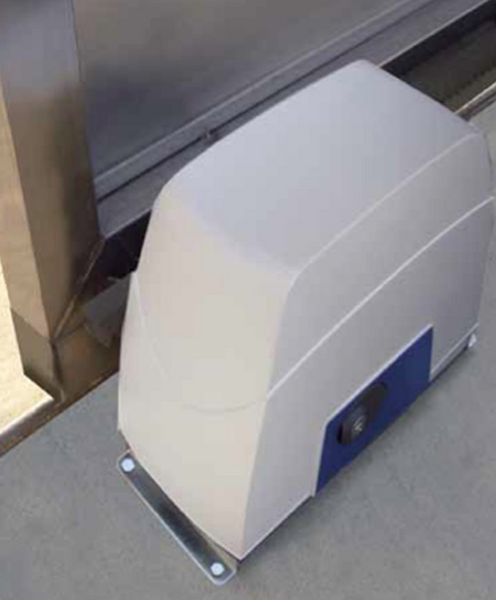

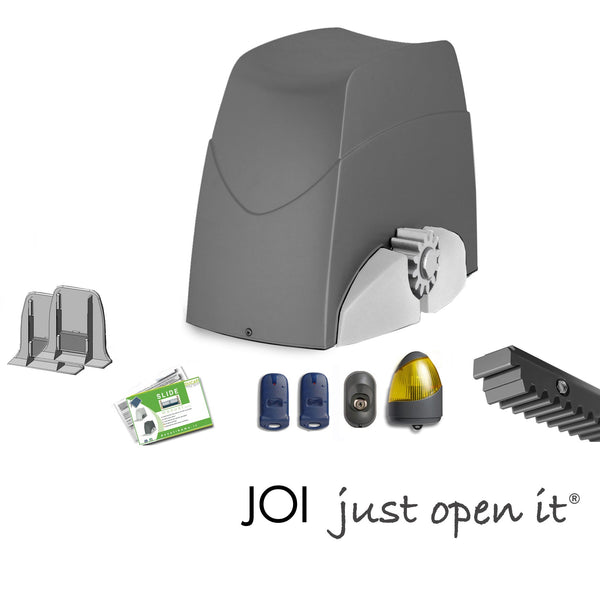

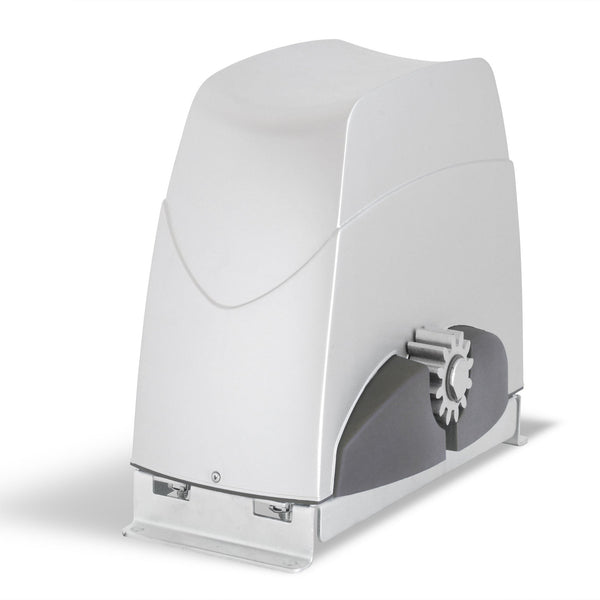

  • 1x SLIDE843MC 24V DC motor case with toroidal transformer, electronic board CTH43, onboard radio receiver (rolling coded) toroidal transformer

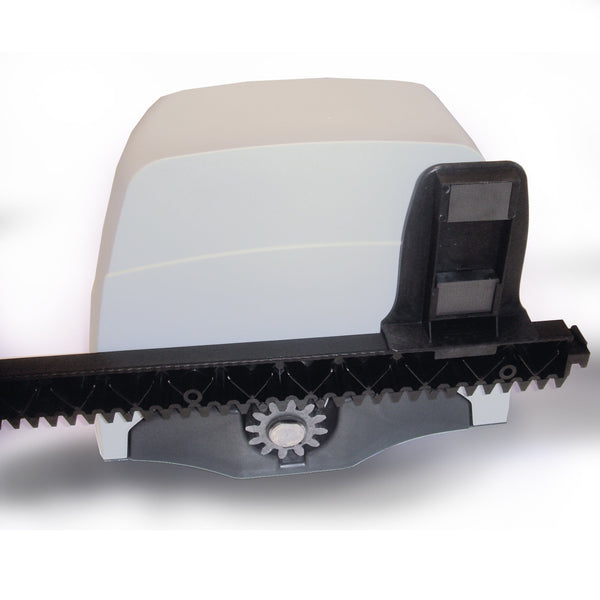

  • 2 x Magnetic end limits
  • 4m x 8612 Hostaform rack ( 8 x 50cm)
  • 1 pair of keys for manual unlocking
  • 1 x  key switch

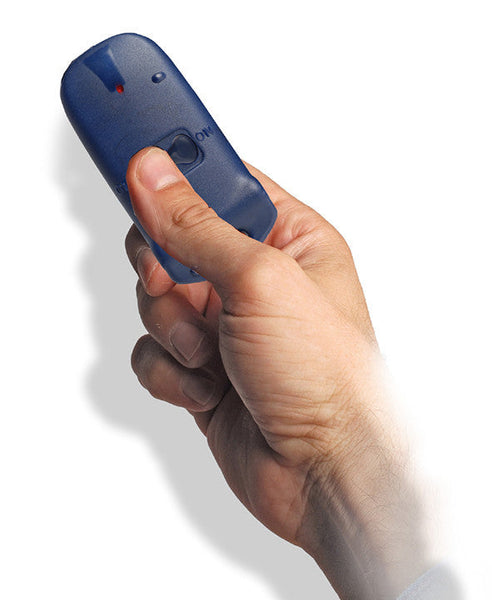

  • 2 x  x DUCATI rolling coded remote controls

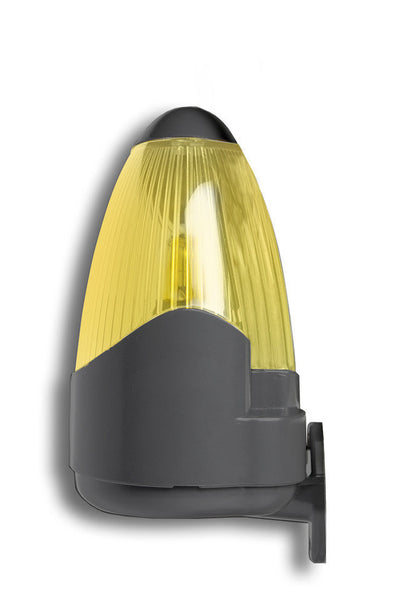

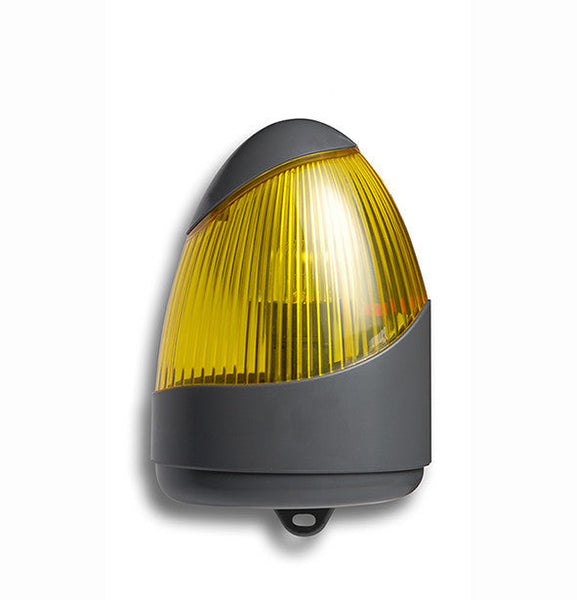

  • 1 x  blinker

SOFT START-SOFT STOP

The opener stops in both directions decreasing the speed and avoiding unwished banging closing. This prevents usury and ensures the long life of your opener and gate. This function prevents the door banging closing

DUCO SAFE technology.  Safety is ensured by a sensitive amperometric obstacle detection system and pressure control. In case the gate touches an obstacle it will immediately stop with a pressure control preventing severe injuries. Photocells (infrared safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while the gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 200

ASR (Automatic Reversal System)

Thanks to the integrated amperometric detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. The highest safety is ensured.

  • Ideal for a safe, quick, and easy installation: the system is electrocution risk-free.
  • Low consumption technology: only 0,007A stand-by consumption! reduces waste of energy, and saves money. Ensure long-lasting autonomous use ad reliability. Ideal for intensive continuous use.
  • can work by rechargeable backup battery for autonomous use in case of power failure. ( Require Adding a complementary battery charger board item CMBAT 2.0 /24V  +  2 x 12V 7A battery ( in series wiring) Batteries must be housed in a separate storage compartment
  • Ideal for a safe, quick, and easy installation: the system works in DC current and is electrocution risk-free.
  • 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
  • Motor housing  with integrated battery housing compartment: can fit any 12V battery up to maximal dimension: 9cm x 15cm x 6,5cm
  • Easy  self-storing  of the remotes controls by pushing one button
  • Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate the potentiometer related to each motor.
  • Pedestrian opening (partial opening of one the gate  to allow  pedestrian crossing only) this feature can be controlled by remote control  or wired command
  • Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
  • After-sale service and assistance are provided directly by manufacturers without intermediaries in order to provide a quick and immediate solution to any demand.
  • The gate is automatically locked in the closed position (irreversible system).

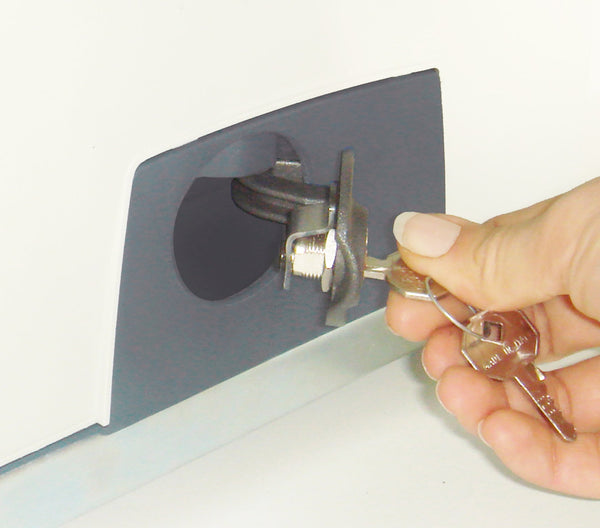

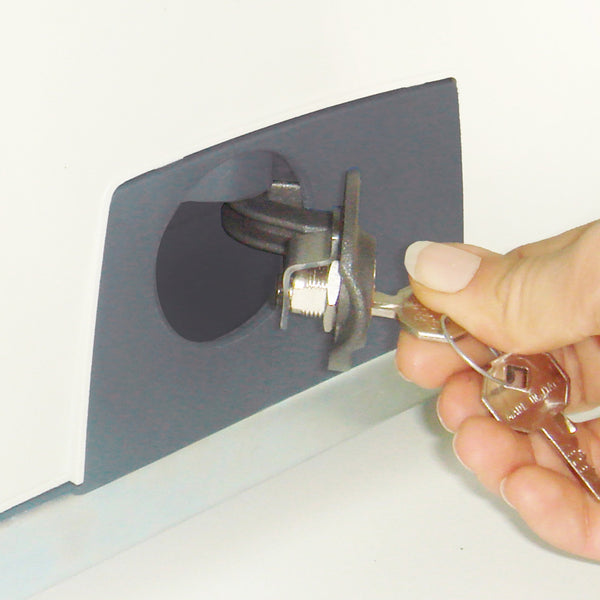

  • Manual release system by key
  • Safety is ensured by a sensitive amperometric obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
  • CE conformity: product certified on all points of the current European regulations. Notify the body as NEMKO / INTERTEK test reports & certificates available on request
  • Totally in-house designed software and hardware are focused on reducing energy consumption and with attention to absolute reliability using innovative components of the latest generation as our High-quality radio receiver hybrid
  • Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V 60Hz version.

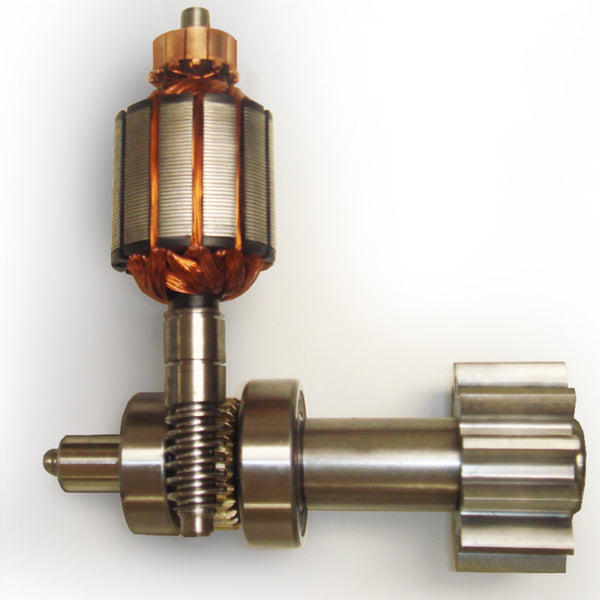

SLIDE 843 M 24V Motor Technical Data

Motor power supply 24V dc
dc motor power 300W
maximum thrust 2800N
Speed 12m/min
Gate weight length up to 800 kg
Operating temperature 20°C/+60°C
Maximum duty cycle continuous use
Magnetic limits





CTH43 ELECTRONIC BOARD TECHNICAL DATA



Main AC power supply 230V (110V on demand)
System Operating Voltage 24V
Stand-by consumption 0.007A
Protection fuse on board
Transformer protection fuse 0.8A T(1.2A T)
Toroidal transformer wattage 105W
System operating voltage 24V
Radio receiver 2 channels rolling code
Radio codes storage capacity 10
Radio transmission protocol DUCATI rolling code 433MHz
Radio remote code learning self-learning
On board antenna
Input external antenna
Automatic closing pause time √ adjustable by trimmer 1-100 sec
Compatible with emergency Backup battery
√ only by adding the complementary CMBAT 2.0/24V battery charger + 2x  12V 7A batteries in series wired ( to be stored in a separate compartment
Motor power adjustment by potentiometer
ARS automatic reverse system on obstacle detection
SOFT STOP Double speed with soft stop
Electric Limits √ magnetic
Safety photocells input √ NC
START operating cycle (total opening  cycle) input NO
START operating cycle (pedestrian partial opening cycle) input NO
Emergency STOP input √ NC
Blinker output 24V up to 10W

CLICK HERE to download the SLIDE  instruction manual







Customer Reviews

Based on 1 review Write a review
BAT 0712

BAT 0712

accessories

  • 12V 7A lead-acid sealed battery Extra slim model
  • Lead acid Capacity: 7Ah Volts: 12 Dimensions 6,5cm W x 15cm L x 9 cm H
€ 35.00EUR
More Info
CMBAT 2.0 (New version!)

CMBAT 2.0 (New version!)

accessories

  • Battery charger module New Version (December 2022) with Upgraded charge controller to be also used to manage the recharge of the battery by a solar panel
  • Compatible with electronic board model CTH42, CTH41, ( swing gate opener) & CTH43 ( sliding gate opener)
€ 32.00EUR
More Info
PLAK 8700

PLAK 8700

accessories

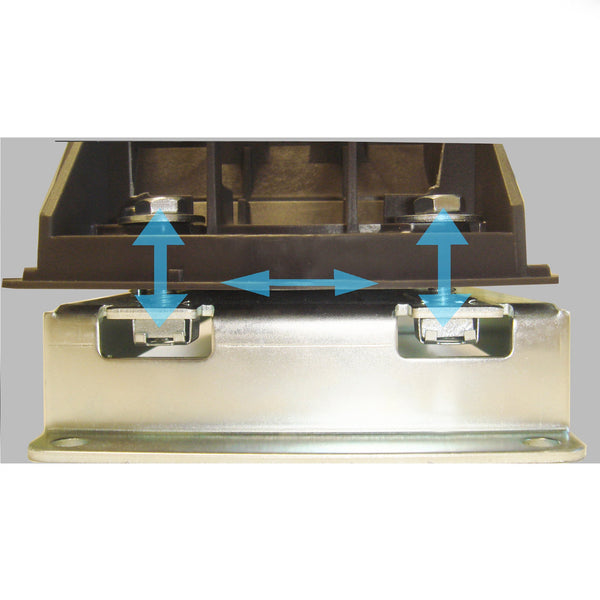

  • Fixing plate with motor position adjustment system Compatible with SLIDE sliding gate opener Material : Stainless steel
