EVO 700

ACTUATOR

Description EVO 700 Swing Gate actuator with 500mm stroke ideal for gates up to 4m /14 ft length each leaf. 12V or 24V version available (24V version is recommended for heavy gates and SOFT STOP options)...

From € 171.00EUR

EVO 700T

ACTUATOR

Description EVO 700 T Swing Gate TELESCOPIC actuator with 500mm stroke ideal for gates up to 5m /16 ft length each leaf. 12V or 24V version available (24V version is recommended for heavy gates and SOFT STOP...

From € 193.00EUR

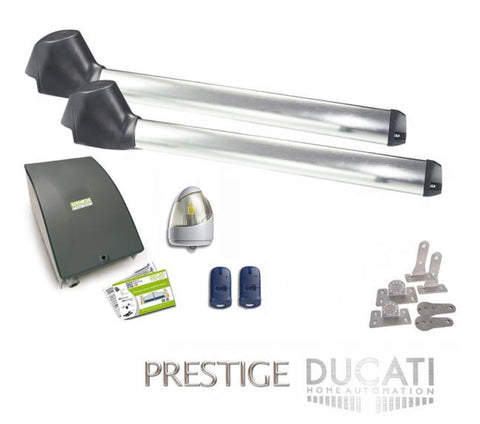

EVO 742 BASIC 2.0

Swing Gate

For 2-leaf swing gates up to 4m max 350 kg per leaf
Linear actuators with stainless steel finishes and a wide range of accessories
In the FC version, it offers double integrated mechanical limit switches, ideal if you do not have ground stops
For gate that opens inwards or outwards
With 12V dc electromechanical motors 500mm stroke
Control unit with a good range of adjustments available
Functions: pedestrian access, compatible with electronic lock and courtesy light
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.012 A

From € 460.00EUR

EVO 748 2.0

Swing Gate

For 2-leaf swing gates up to 4m max 350 kg per leaf
Linear actuators with stainless steel finishes and a wide range of accessories
In the FC version, it offers double integrated mechanical limit switches, ideal if you do not have ground stops
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
Mains power supply, emergency battery or solar panel
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 629.00EUR

EVO 748 mono

Swing Gate

For 1-leaf swing gates up to 4m max 350 kg
Linear actuators with stainless steel finishes and a wide range of accessories
In the FC version, it offers double integrated mechanical limit switches, ideal if you do not have ground stops
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
Mains power supply, emergency battery or solar panel
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 545.00EUR

EVO 748 SOLAR

Swing Gate

For 2-leaf swing gates up to 4m max 350 kg per leaf
KIT with 100% autonomous power supply from solar panel. high autonomy and reliability
Linear with stainless steel finishes and a wide range of accessories
In the FC version, it offers double integrated mechanical limit switches, ideal if you do not have ground stops
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 723.00EUR

EVO 748 SOLAR MONO

Swing Gate

For 1-leaf swing gates up to 4m max 350 kg
KIT with 100% autonomous power supply from solar panel. high autonomy and reliability
Linear with stainless steel finishes and a wide range of accessories
In the FC version, it offers double integrated mechanical limit switches, ideal if you do not have ground stops
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 639.00EUR

EVO 748 T

Swing Gate

For 2-leaf swing gates up to 5m max 400 kg per leaf
Telescopic actuators with stainless steel finishes and a wide range of accessories
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
Mains power supply, emergency battery or solar panel
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 671.00EUR

EVO 748 T MONO

Swing Gate

For 1-leaf swing gates up to 5m max 400 kg
Telescopic actuators with stainless steel finishes and a wide range of accessories
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
Mains power supply, emergency battery or solar panel
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 576.00EUR

EVO 748 T SOLAR

Swing Gate

For 2-leaf swing gates up to 5m max 400 kg per leaf
KIT with 100% autonomous power supply from solar panel. high autonomy and reliability
Telescopic actuators with stainless steel finishes and a wide range of accessories
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
Mains power supply, emergency battery or solar panel
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 786.00EUR

EVO 748 T SOLAR MONO

Swing Gate

For 1-leaf swing gates up to 5m max 400 kg
KIT with 100% autonomous power supply from solar panel. high autonomy and reliability
Telescopic actuators with stainless steel finishes and a wide range of accessories
Compatible with gate that opens inwards or outwards
Motors available in 12V or 24V dc version with 500mm stroke
High-performance control unit with a large variety of functions
SOFT STOP: with slowing down and reversing on an obstacle
Mains power supply, emergency battery or solar panel
DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
ECOLOGICAL: energy saving. absorption in stand-by: only 0.007 A

From € 692.00EUR

FC SET

MECHANICAL LIMIT ENDS TO BE INSTALLED ON FOLLOWING ACTUATORS: SW400 SW400T EVO 400 EVO 700 EVO 700T EVE 900 EVE 900T HC312 HC412 HC512 HC612 HC418 HC518 HC618

€ 27.00EUR
