  • 10W Solar Panel Supplied with fixing bow and bracket photovoltaic module made with polycrystalline silicon cells
  • Highly transparent prismatic tempered glass

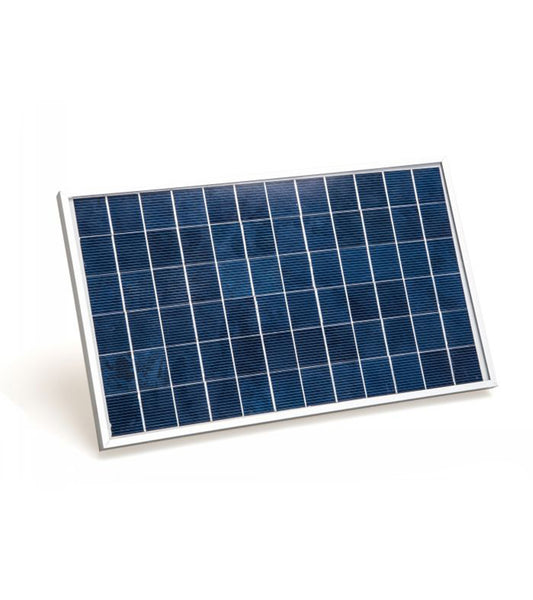

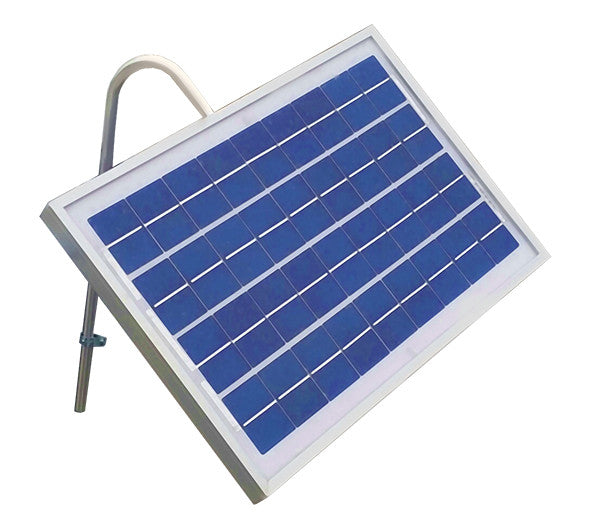

10W Solar Panel

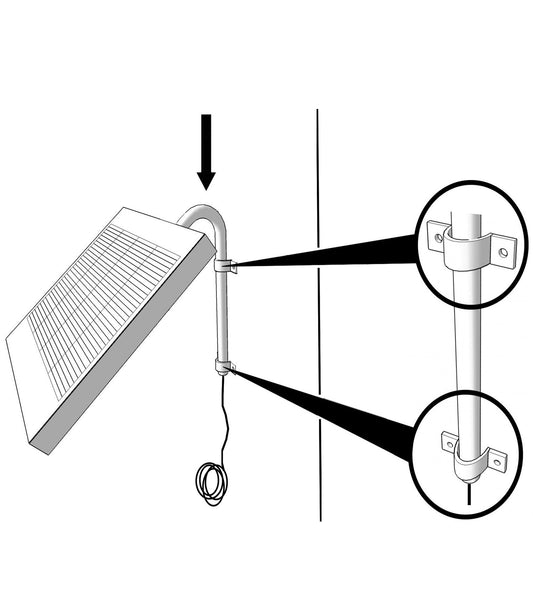

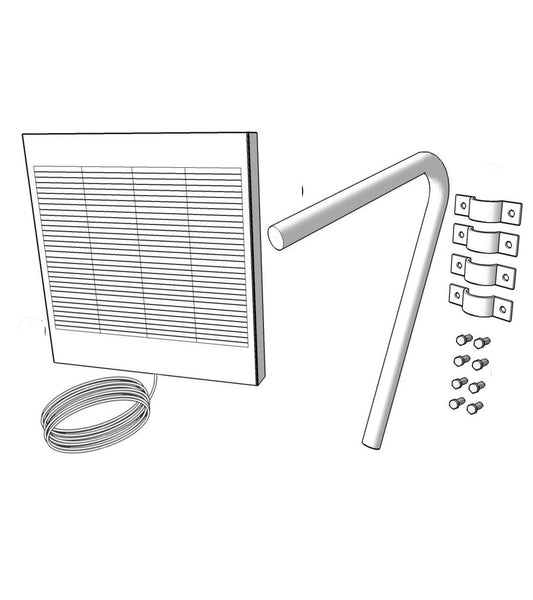

Supplied with fixing bow and bracket

photovoltaic module made with polycrystalline silicon cells.
Highly transparent prismatic tempered glass and  Tedlar sheet protects the cells, which are encapsulated between two sheets of EVA (Ethylene Vinyl Acetate). A robust anodized aluminum frame 17mm makes the modules extremely resistant.
The production process ensures the cells maximum protection even under the most demanding working conditions and the most difficult environmental conditions.


Maximum power (Pmax) 10 Wp
Short Circuit Current (Isc) 0.67 A
Open Circuit Voltage (Voc) 22.25 V
MPP current (Imax) 0.56 A
MPP voltage (Vmax) 18,00 V
Isolation voltage 1000 V
PHYSICAL CHARACTERISTICS
Dimensions (mm) 350 x 260 x 17
Weight 1,1 Kg


CONSTRUCTION FEATURES
Polycrystalline cell type
Number of cells 36
Front (Front) Tempered Glass
Rear (Rear) Tedlar multi-layer
encapsulation EVA
Anodized aluminum frame
