KONTROL 7857

CHOOSE PRODUCT VARIANT

€ 248.00EUR

Shipment/TAX are calculated to Check Out and depends on delivery address

Ducati's SOLAR control box for 100% autonomous use double or single swing gate openers (12V)

Ideal for residential use and ensures 100% autonomous use even where AC power is unavailable.

Highly reliable as featured with Ducati's low consumption technology FULLSOL: with only 7mA stand-by consumption ensures long lasting performances in all weather condition. Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!
featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family
Easy adjustments and high reliability
Ideal for residencial useOriginal Made in Italy

Comes with toroidal transformer, electronic board CTH44 featuring DUCATI's rolling coded radio transmission ( on board radio receive & antenna cable).
On board solar panel & battery charge management

MOTOR COMPATIBILITY:

compatible with all DUCATI's 12V actuators

ACCESSORIES COMPATIBILITY:

DUCATI's rolling coded remote controls,
key switch NO ( normally open contact)
special low consumption 12V photocells model 7120
12V bulb blinker
12V min. 10W solar module & 7A 12V battery
MPBAT battery charger with european plug & charge control

Ideal for a safe, quick and easy installation: the system is electrocution risk-free.
Low consumption technology: only 7mA stand-by consumption! Protect the environment, reduces waste of energy, save money.
Ensure long lasting autonomous use ad reliability. up to 40 daily cycles guaranteed even in worst winter weather.
Control unit with integrated battery housing compartment: can fit any battery up to maximal dimension : 9cm x 15cm x 9,5cm h
Integrated solar panel & battery management: the card is a just ready to operate autonomously powered by solar panel. No need to add any extra module
standard battery use: when you'll need to replace the battery ( about each 2-3 years of use) you can find it anywere a we do not use customized expensive batteries
Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step mode (push to open & push to close).

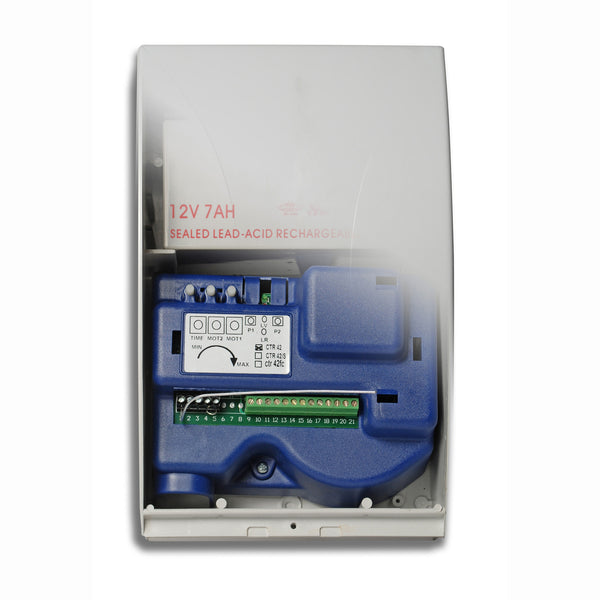

Control unit with integrated battery housing compartment
Easy self-storing of the remotes controls by pushing one button
Adjustable motor power
Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing)
Made in Italy - All components are manufactured in the company to warranty high quality and reliability. After sale service and assistance provided directly by manufacturer without intermediaries
Quick and easy installation

CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

CTH44 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

Main power supply	By 12V solar module + 12V battery or by main AC power + 12V battery. Note: the control box is always supplied with an additional toroidal transformer 230-240V /50-60Hz or (110V/60Hz).Select the desired version while ordering)
toroidal transformer's Watts	105W
protection fuse	√10AF
transformer protection fuse	0,8AT (1,2AT for 110V transformer)
use on single or double wing gate	√
output services	12V
stand-by power consumption	7mA
radio receiver	2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening)
remote controls channels storage capacity	10 codes
radio transmission protocol	DUCATI rolling code
radio frequency	433,92MHz
remote control automatic learning	√
On board antenna	√
external antenna input	√
automatic closure working mode	√ with adjustable pause time up to 100 sec.
step by step working	√ one pulse to open; one pulse to close
motor power adjustment	√ by potentiometer
Obstacle detection safety system(DUCO SAFE)	obstacle detection
In compliance with EU-CE norms	√
timerized courtesy light output	-
flashing light output	√ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output	-
safety beam-photocells input (NC contact)	√ NC normally closed contact Note: use of special low consumption photocells is recommended: use only DUCATI low consumption photocells model 7120
A full cycle START input(NO contact)	√
pedestrian cycle START input ( N contact)	-
output for optional additional back-up battery charge management & module CMBAT	√
