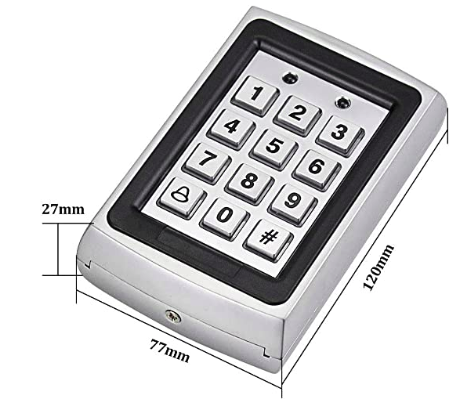

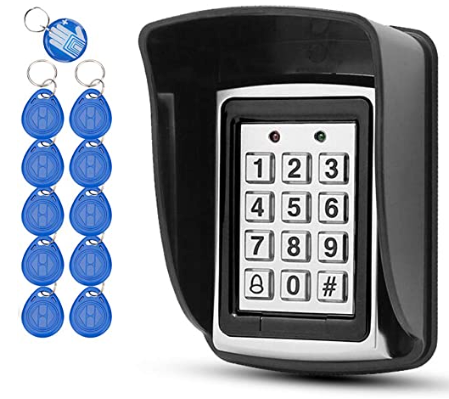

- 1. Package including: Metal keyboard + rain cover + 10keys + RFID Epoxy card + manual
2. Aluminum material of keyboard. Its quality is very stable and safe.
3. Support input mode: password only / ID card only / password + ID card
4.Support 1000 standard users. With lock relay output, safe/normal mode, NO/NC output
a good rein protection.

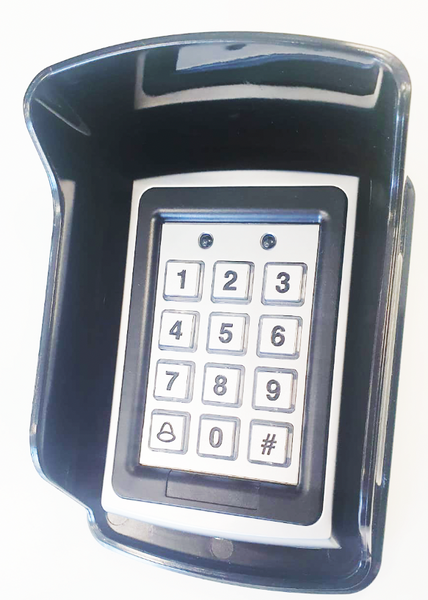

The device itself is not-waterproof but a protection cover protects it from rain and can be therefore used outside.
Support 1000 standard users Support login mode: Password only / ID card only / Password + ID card
Can add card number and delete card number as your requirement Classical appearance with useful function
Alarm function With lock relay output, safe/normal mode, NO/NC output Built-in bell push button can connect external bell Built-in proximity card reader (125KHZ ASK modulation)
Integrated keypad for PIN code entry Sensitively and quickly responding Auxiliary output and Auxiliary output 8 Auxiliary modes including: door closed, forced door, shunt, door monitor, Normal / safe
2 programming status / programming switches 3 user toggles: normal user, secure user, master user Code lookup function that helps make maintaining user codes easier Built-in case and tamper bell, guitar, siren, battery backup, tamper Output characteristics available with IBA power supplies Programmable siren time Programmable lockout release time
Input voltage: DC 12V
Compatible Cards: All 26-bit EM Cards (Can't support some encrypted files Cards, such as HID, Cobra, APCiK etc.)
Operating temperature: -31C ~ 63C
Net weight: approx. 410 (0.9 lb) g
