SLIDE 2500 (kit)
SLIDE 2500 powerful sliding gate opener
Ideal for heavy duty residential gates up to 2500kg

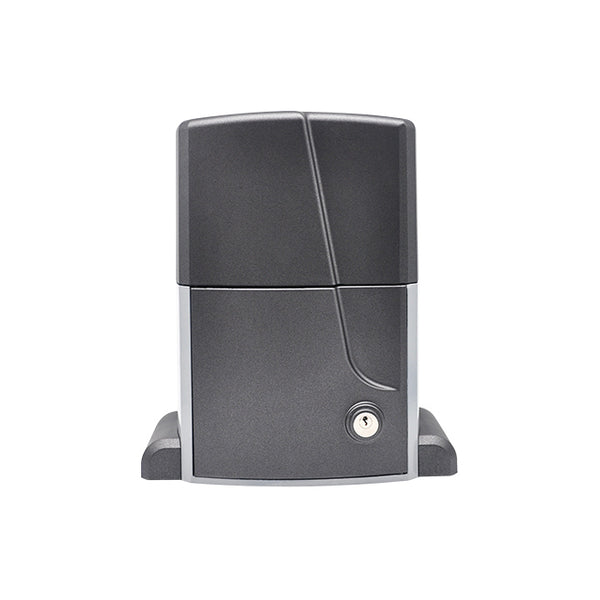

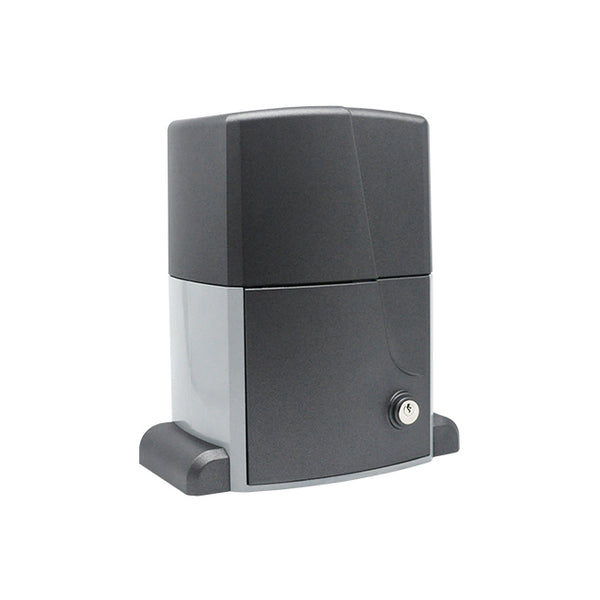

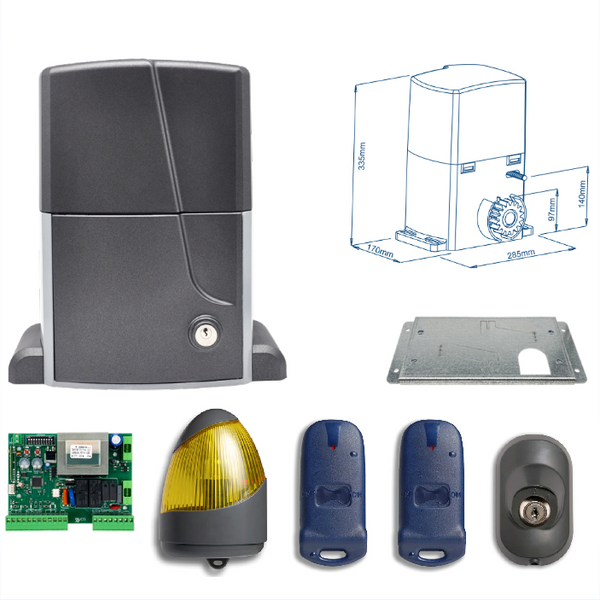

- 1x SLIDE 2500MC 24V DC motor case with toroidal transformer, electronic board & on board radio receiver (rolling coded)
- 1 pair of keys for manual unlocking

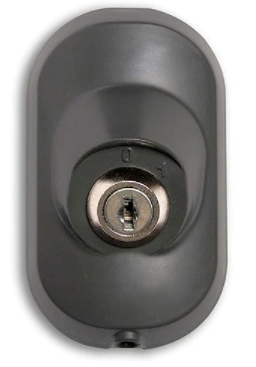

- 1 x SW5000 key switch

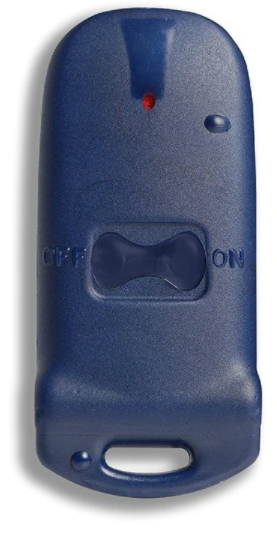

- 2 x 6203R x DUCATI rolling coded remote controls

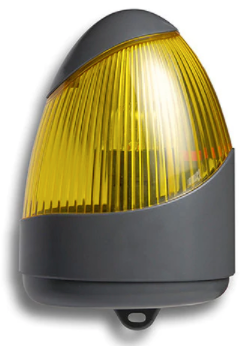

- 1 x FLASH 7500 blinker
- Leaf weight 2500 Kg
- Structure in die-cast aluminum, powder painted
- Steel and cast gears obtained from solid
- Stator and mechanical parts in oil bath
- Available with and without control unit
- Control unit with built in radio receiver and aerial, control unit box with air-stop seal against moisture and insects
- Pre-wired and easy programming software
- High-performance electric motor
- Mechanical limit switch
- Release device with customised key
- Electronic torque control
- Very quiet operation
- Anti-squashing system and slowing down function (en 12453)
- Power supply 230Vac
| POWER SUPPLY | 230 Vac |
| LEAF WEIGHT | 2500 KG |
| PINION | M4-Z16 |
| ENGINE RPM | 1400 RPM |
| AVERAGE ABSORPTION | 2.4 A |
| ABSORBED POWER | 650 W |
| CONDENSER | 25 UF |
| OPERATOR WEIGHT | 18 KG |
| NOISE LEVEL | < 30 DBA |
| ENVIRONMENTAL CONDITIONS | -20/+55° C |
| DEGREE OF PROTECTION | IP44 |
