Automatic Gate Openers, Garage Door Openers and French Window Shuttered Doors

PR70 (for Persy 62-62V)

CHOOSE PRODUCT VARIANT
€ 155.00EUR

Shipment/TAX are calculated to Check Out and depends on delivery address

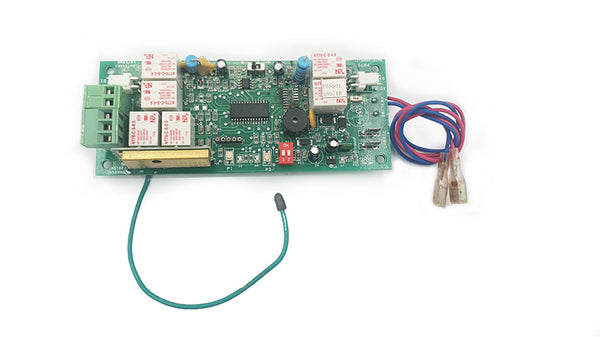

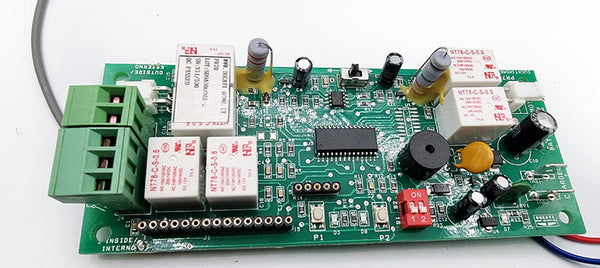

  • Electronic board for automatic swinging shuttered french window openers SCORRY
    this electronic board features an integrated hybrid radio receiver:

    How to select the Hybrid receiver VARIANT type of the PR70 electronic board:

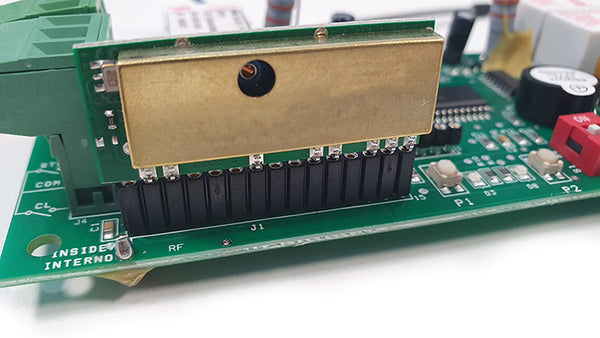

    a) "ECO" version comes with an extremely reduced energy consumption radio receiver (AURLand is intended for systems powered by battery only or battery + solar panel as it reduces to the maximum the stand-by energetical consumption.

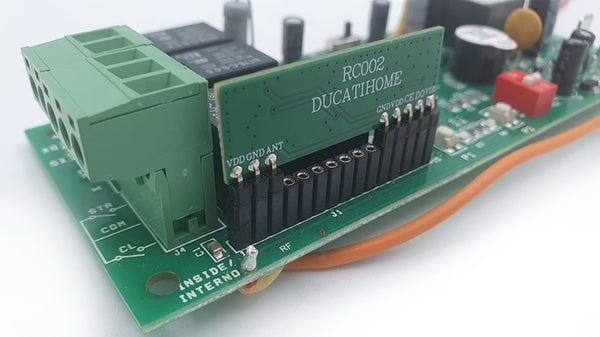

    b)"PWRversion comes with a standard energy consumption radio receiver  (RC002) and is intended for systems powered by battery + adapter PRSAL012 and main AC power to keep the battery always in charge or systems powered only by mains 230V AC power supply by means o adapter PRSAL 230V.



    How to select the RADIO TRANSMISSION PROTOCOL VARIANT Version of the PR70 electronic board:

    a) standard Ducati rolling code Variant: is  compatible with all Ducati rolling coded radio remote controls such 6203R; 6203P, 6203N, 6208, SW6512; SW6500, SW6504, Tasty 6700, Tasty 6704

    b) Special 24BIT radio transmission Code that allows extra distance working range: this is compatible with 24bit radio remote controls models: 62096210, 6203N, 6208 2.0,

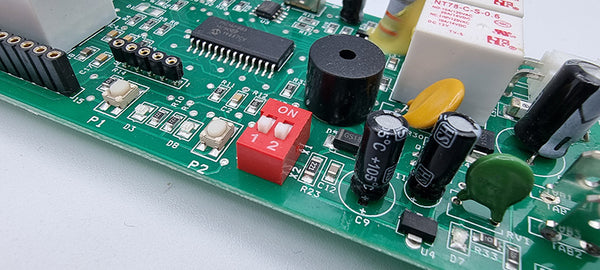

    How to select the SOFTWARE RELEASE VARIANT Version of the PR70 electronic board:

    Preamble: on each PR70 electronic board there are:

    - 2 radio reception channels and

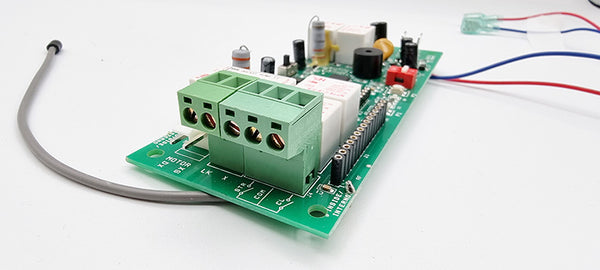

    - 2 corresponding input contacts for wired commands. Those are NO (= Normally Open) clean contact( = without current). To start the maneuver it is necessary to close the contact for 1 second only.


    There are 3 software variants available and this determines the functions commanded by radio receiver channel n° 1 (P1) and wide contact n° 1 ( STR-COM)

    SOFTWARE #1 STANDARD

    1 STEP-BY-STEP radio channel/wired input + 1 TOTAL CLOSE radio channel/wired button) offers:
    * 1 radio reception channel (or STR+COM terminals, NO clean contact input for wired connection) starts the step-by-step command = 1 impulse starts the opening maneuver; 1 impulse during the movement stops the shutters at the point where they are located and a further impulse starts the closing maneuver.

    * 1 radio reception channel (or CL+COM terminals, NO voltage-free contact input for wired connection) starts the total and sole closing command. With this command, designed for the simultaneous closing of several shutters, the openers will close regardless of the position they are in and will not accept further signals until the closing maneuver is completed.


    SOFTWARE #2

    = 1 OPEN-STOP-OPEN radio channel/wired input + 1 TOTAL CLOSE radio channel/wired button) offers:


    * 1 radio reception channel (or STR+COM terminals, NO clean contact input for wired connection) starts the command sequence: OPEN-STOP-OPEN maneuver: 1 impulse starts the opening maneuver; 1 impulse during the opening movement stops the shutters at the point where they are located a further impulse continues the opening movement.


    * 1 radio reception channel (or CL+COM terminals, NO voltage-free contact input for wired connection) starts the total and sole closing command. With this command, designed for the simultaneous closing of several shutters, the openers will close regardless of the position they are in and will not accept further signals until the closing maneuver is completed.


    SOFTWARE #3

    = 1 TOTAL OPEN radio channel/wired input + 1 TOTAL CLOSE radio channel/wired button) offers:


    * 1 radio reception channel (or STR+COM terminals, NO clean contact input for wired connection) starts the opening maneuver command: OPEN-STOP-OPEN maneuver: 1 impulse starts the total and sole opening command. With this command, designed for the simultaneous opening of several doors, the openers will close regardless of the position they are in and will not accept further signals until the opening maneuver is completed.


    * 1 radio reception channel (or CL+COM terminals, NO voltage-free contact input for wired connection) starts the total and sole closing command. With this command, designed for the simultaneous closing of several shutters, the openers will close regardless of the position they are in and will not accept further signals until the closing maneuver is completed.




  • Electronic board compatible with swing shuttered french windor openers model:
  • PERSY62V
  • PERSY62V-MONO
  • PERSY62
  • PERSY62-MONO
