Shipment/TAX are calculated to Check Out and depends on delivery address
Ideal for 2 wing swing gates up to 5m/500kg each wing
(total gate length up to 10m/1000kg)
Versatile, operates by 3 type of power supply
Ensures 100% autonomous use even where AC power is unavailable
Highly reliable as featured with Ducati's reduced consumption technology: with only 7mA stand-by consumption ensures long lasting performances in all weather condition. Ideal for residential use. Up to 50 cycles daily guaranteed . No additional modules requires: it's all included: on board solar panel & battery recharge management!
ARS (Automatic Reversal System)
Thanks to the integrated amperometrical detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. Highest safety is ensured.
obstacle detection safety system guarantees maximal safety of use to your family
SELF LOCK TECHNOLOGY
The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation
Manual release system by universal triangular key
ACTUATOR TECHNICAL DATA

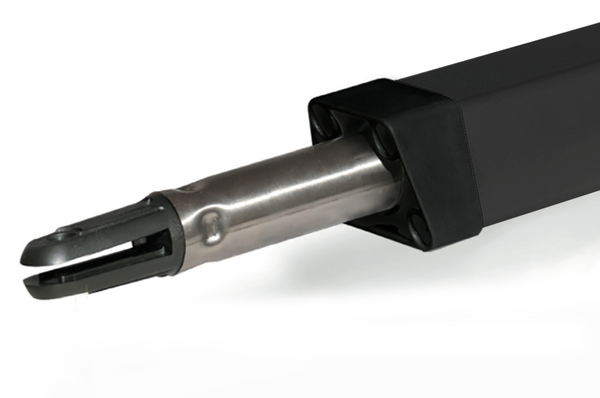

ELECROMECHANICAL TELESCOPIC ACTUATOR HC612
NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC612 in "FC" version are featured with on-board mechanical limits for the open wing position.
CTH48 ELECTRONIC BOARD TECHNICAL DATA
(solar panel & battery management on board)
flashing light output
CLICK HERE to download the general instruction manual
HC612 actuator installation diagram
CTH48 Manual electronic board wiring diagram
6203Roll remote control instructions
CTH48 installation video
