EVO 742 BASIC 2.0

Dark gray (anthracite)
Dark gray (anthracite)
SIlver (light gray)
€ 460.00EUR

Shipment/TAX are calculated to Check Out and depends on delivery address

  • For 2-leaf swing gates up to 4m max 350 kg per leaf
  • Linear actuators with stainless steel finishes and a wide range of accessories
  • In the FC version, it offers double integrated mechanical limit switches, ideal if you do not have ground stops
  • For gate that opens inwards or outwards
  • With 12V dc electromechanical motors 500mm stroke
  • Control unit with a good range of adjustments available
  • Functions: pedestrian access, compatible with electronic lock and courtesy light
  • DUCO SAFE: the anti-pressure obstacle safety system complies with EU standards
  • ECOLOGICAL: energy saving. absorption in stand-by: only 0.012 A

Ideal for double wing gate up to  4m/350kg

(total gate length up to 8m/700kg)

The perfect heavy duty gate opener.
Comes with powerful  500mm long stroke motor
Ideal for residential & commercial use



obstacle detection safety system guarantees maximal safety of use to your family


The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

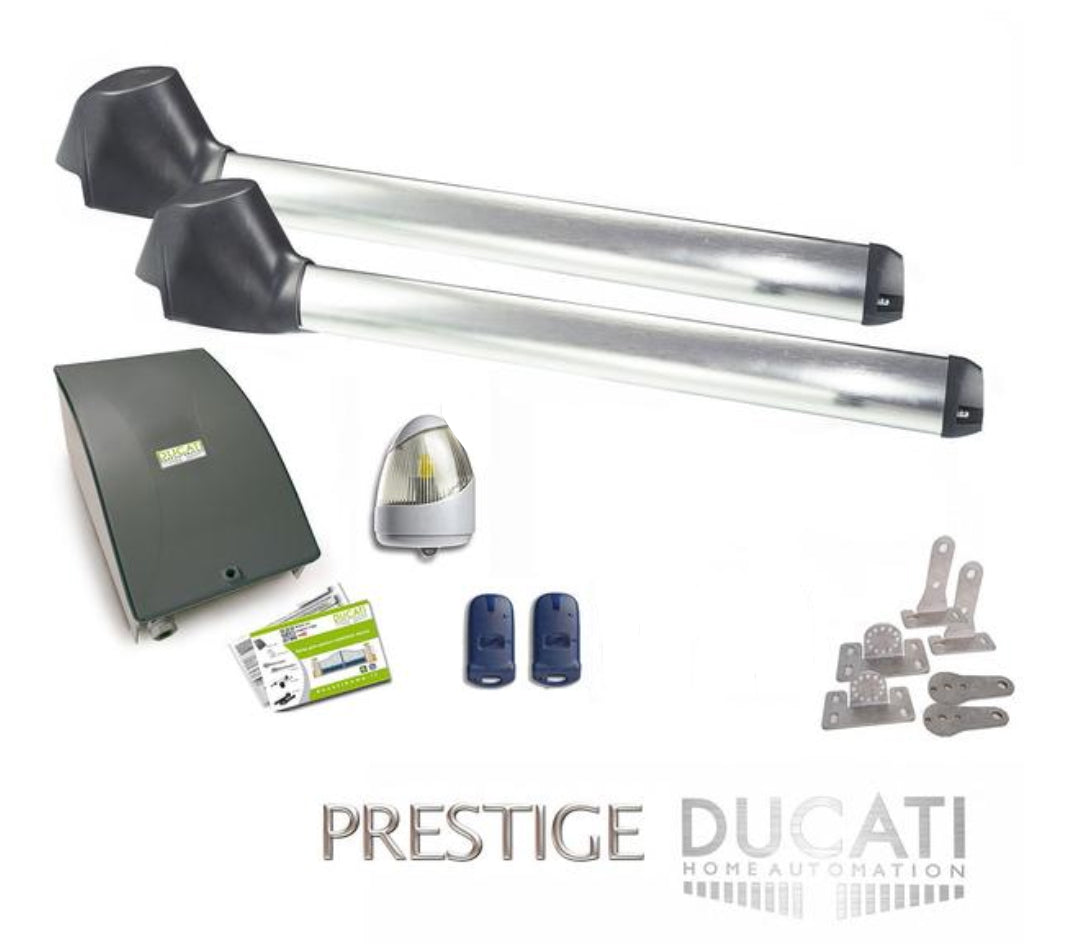

  • 2x EVO 700 500mm stroke 12V electromechanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq
  • set of multi-position actuator's fixing brackets
  • 1x KONTROL 7855  large control box with electronic board CTH42, toroidal transformer, integrated radio receiver
  • 2x Ducati  rolling code radio transmitters
  • 1x  - blinking light
  • 1x key for manual emergency release
  • 1x instruction manual

  • Can work independently in case of power failure: by adding the external battery charger module C/M/BAT 2.0 *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
  • Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open/ push to close)
  • Adjustable motor power/ obstacle detection sensivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
  • Ideal for a safe, quick and easy  installation: the system is electrocution risk-free.
  • heavy duty opener: can work in continuous cycles  without overheating
  • Possibility of connecting an external timed courtesy light (example: garden light)
  • Pedestrian opening (1 partial opening the wing to allow the pedestrian crossing only) can be controlled by remote control or wired control.
  • Possibility of connecting an external timed courtesy light (example: garden light)
  • The gate is  automatically locked in closed position ( irreversibile system).
  •  Electro-lock is not needed, but recommended for wing longer than 2,8m each. This opener is compatible with ac 12V electric-lock ( WARNING: electrolock with booster are required in case the opener is powered by back-up battery)
  • Made in Italy - All components are manufactured in the company to warranty high  quality and reliability.
  • After sale service and assistance provided directly by manufacturer without intermediaries
  • Easy  self-storing  of the remotes controls by pushing one button
  • Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
  • CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
  • Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
  • Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
  • Manual release system by universal triangular key



Motor power supply (24V version)
12V (24V)
dc motor  (24V version) 120W (240W)
max pushing & power 2400N (4800N)
Stroke 500mm
motor speed
(24V version)
1,5mm (2cm/sec)
telescopic actuator -
working cycles limit continuous use/ no limits
working temperature -20°C/+50°C
max wing length 4m each
max.wing weight (24V version) 250kg each leaf ( 350kg each)
max. opening angle 137°
automatic wing lock  √ irreversible actuator
manual release system √ by triangular key
Compatible with  gate opening towards outside

NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model  in "FC" version are featured with on-board mechanical limits for the open & closed  wing position.



Main power supply
230-240V /50-60Hz or (110V/60Hz) (both variant of toroidal transformer are available. Select the desired version while ordering)
toroidal transformer's Watts 105W
protection fuse √10AF
transformer protection fuse 0,8AT (1,2AT for 110V transformer)
use on single or double wing gate
output services 12V
stand-by power consumption 12mA
radio receiver 2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening)
remote controls channels storage capacity 10 codes
radio transmission protocol DUCATI rolling code
radio frequency 433,92MHz
remote control automatic learning
On board antenna
external antenna input
automatic closure working mode √ with adjustable pause time up to 100 sec.
step by step working √ one pulse to open; one pulse to close
motor power adjustment √ by potentiometer
Obstacle detection safety system(DUCO SAFE) obstacle detection
In compliance with EU-CE norms
timerized courtesy light output √ max 10W 12V lamp
flashing light output √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output √ ac(warning the electric lock is incompatible with/while the board is powered by back-up battery)
safety beam-photocells input (NC contact) √ NC normally closed contact
A full cycle START input(NO contact)
pedestrian cycle START input ( N contact)
output for optional additional back-up battery charge management & module CMBAT

CLICK HERE to download the general instruction manual

CTH42 Manual electronic board

6203Roll remote control instructions

cth42 video manual

EVO700 click to download installation diagram
