SW7000T

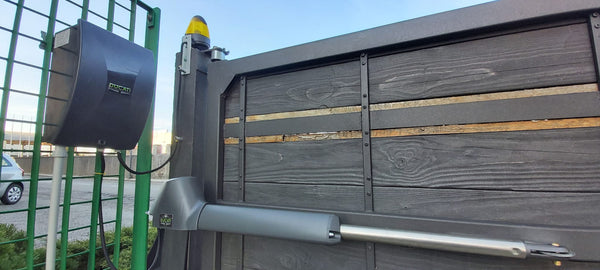

Ducati's modern design swing gate opener
Double wing swing gate up to 2 x 2,6 m/8,5ft each wing
- Ducati's modern design DC gate opener
- featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family. Original Made in Italy.
- For those who desire a very uncomplicated gate opener, easy to be installed

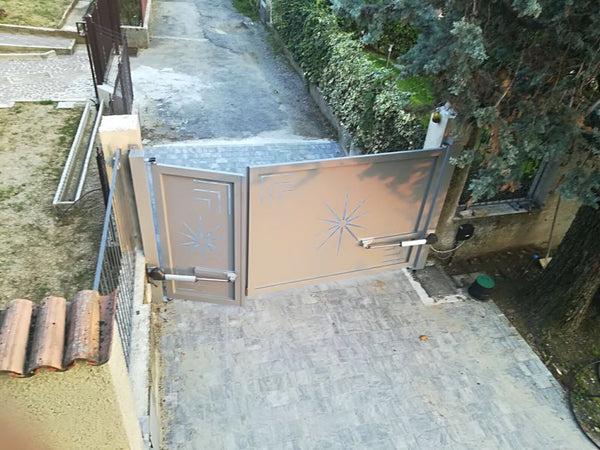

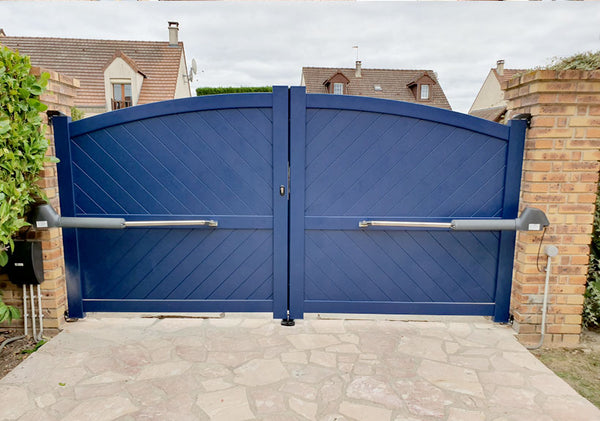

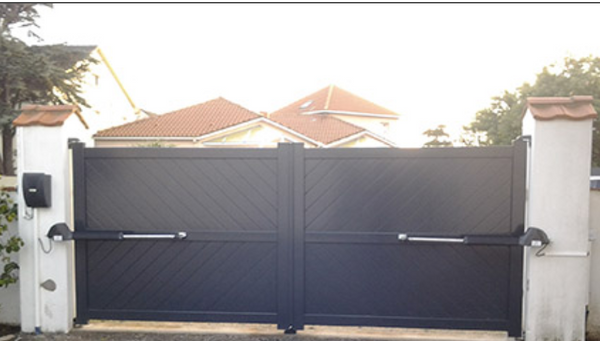

- Ideal for double wing swing gate

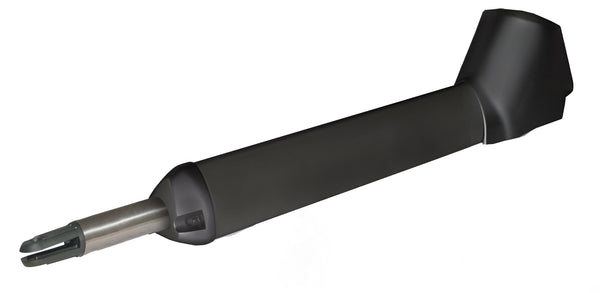

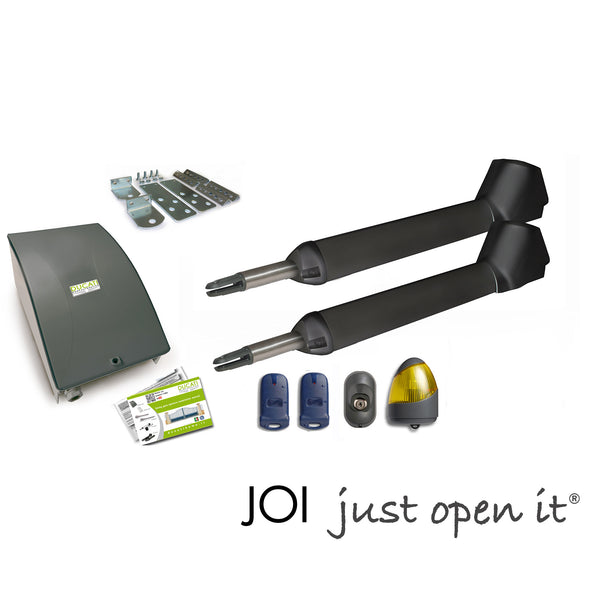

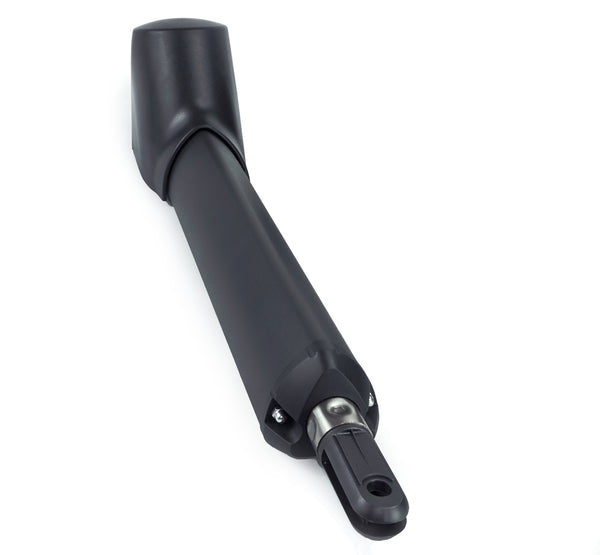

- 2xSW400T - 400mm stroke 12V telescopic actuators

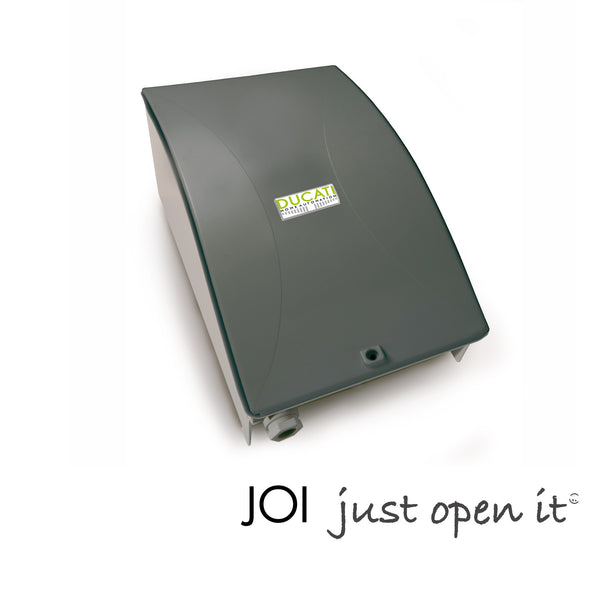

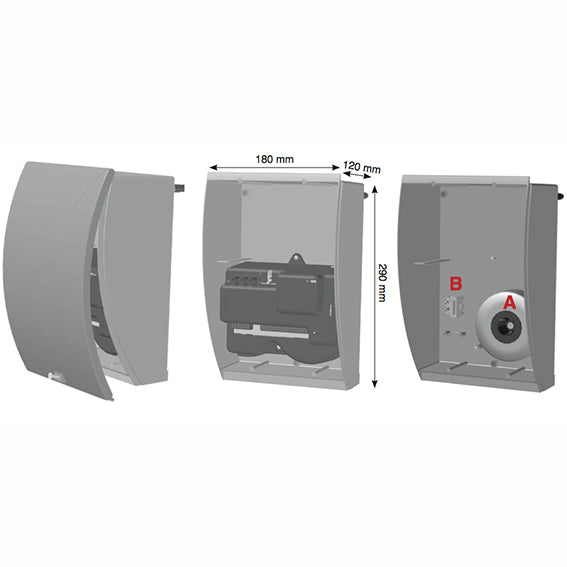

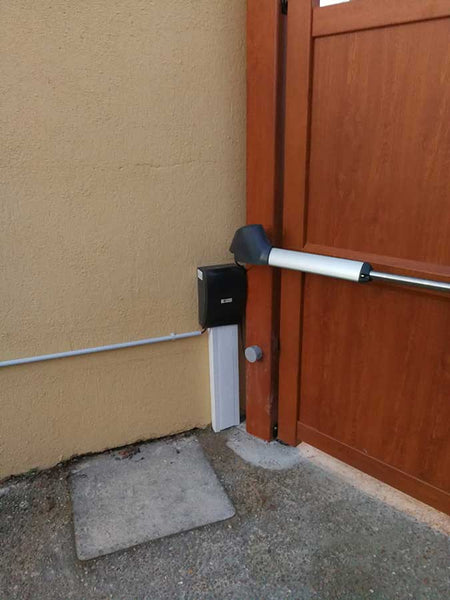

- 1x7855Rol - Large control box with electronic board CTH42+ transformer

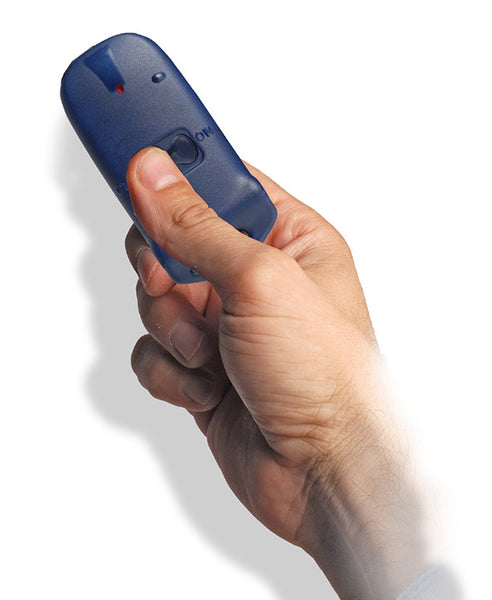

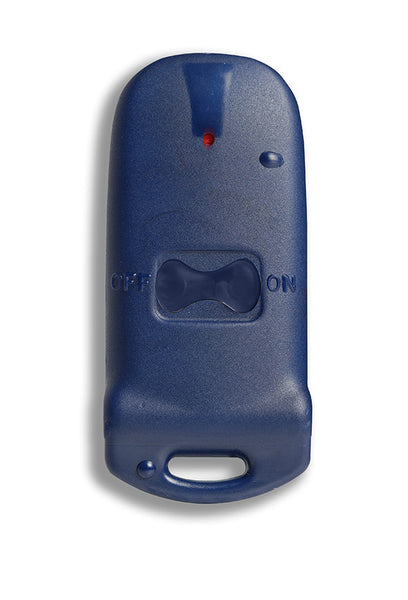

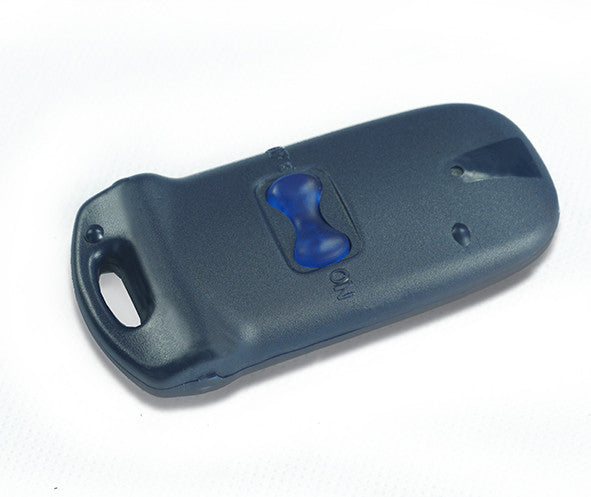

- 2x 6203Roll - 2 buttons 433 Mhz rolling code transmitters

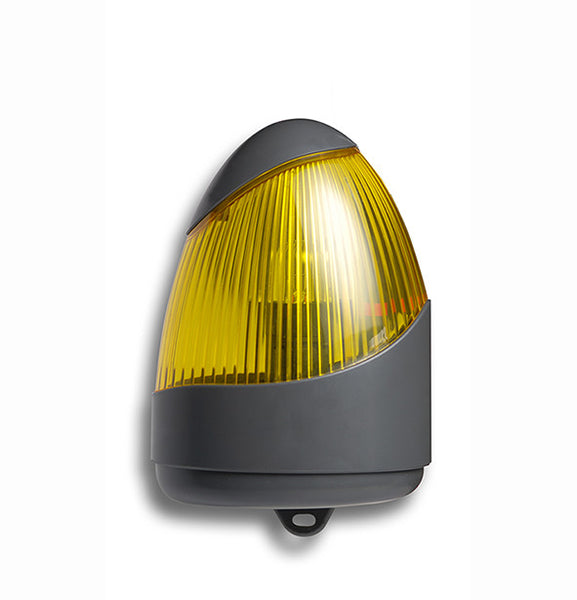

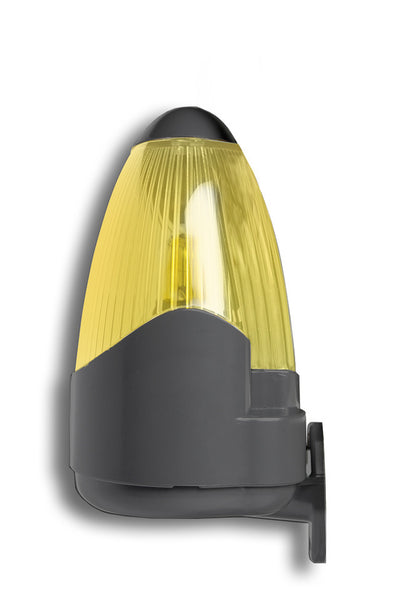

- 1x SW7500 - blinking light 12V

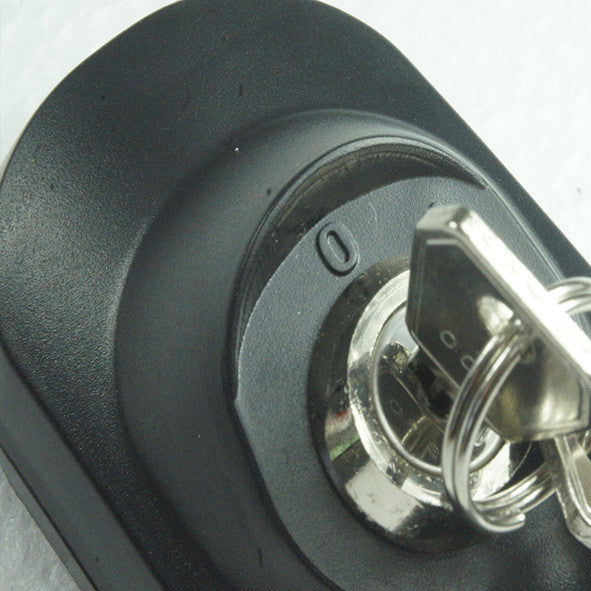

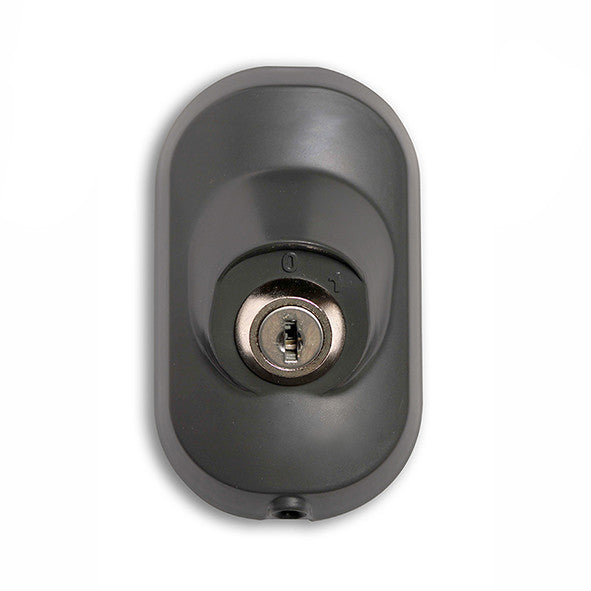

- 1x SW5000 - key switch

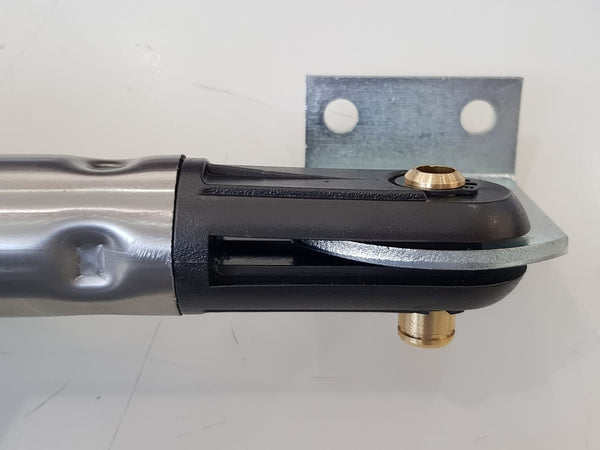

- 1 set of actuators fixing plates
- 1x instruction manual
AUTO-LOCK TECHNOLOGY
The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation
DUCO SAFE
Obstacle detection safety system guarantees maximal safety of use to your family
- Telescopic actuators ensures long lasting performances and less stess on gate hinges
- Ideal for a safe, quick and easy installation: the system works in DC current and is electrocution risk-free.
- Possibility of connecting an external timed courtesy light (example: garden light)
- 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
- Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
- Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
- Easy self-storing of the remotes controls by pushing one button
- Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.

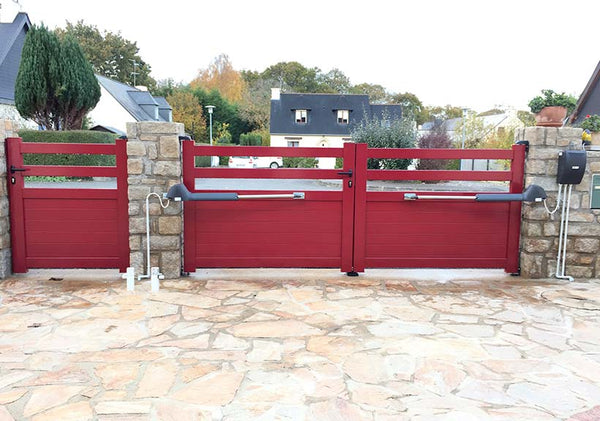

- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
- Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
- After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
- The gate is automatically locked in closed position (irreversibile system).

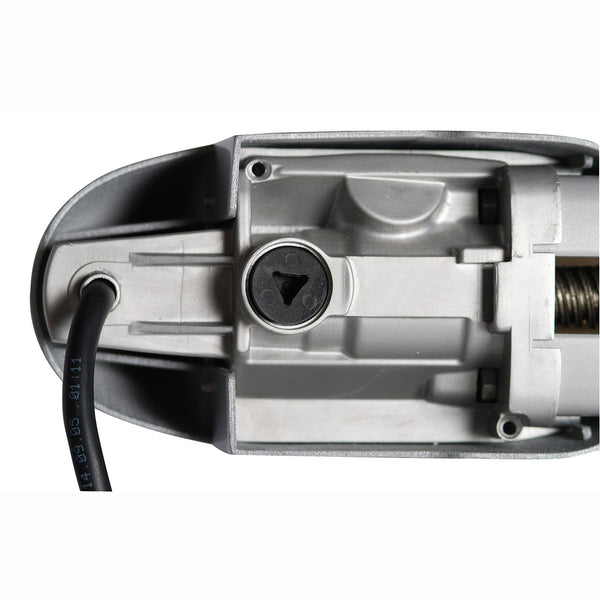

- Manual release system by universal triangular key
- Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
ACTUATOR TECHNICAL DATA
ELECROMECHANICAL TELESCOPIC ACTUATOR SW400T
|
|
|
| dc motor | 60W |
| max pushing & power | 1200N |
| Stroke | 400mm |
| motor speed | 1,5 cm/sec |
| telescopic actuator | √ |
| working cycles limit | continuous use/ no limits |
| working temperature | -20°C/+50°C |
| max wing length | 2,6m/8.5ft each leaf |
| max.wing weight | 250kg/550 lb each leaf |
| max. opening angle | 130° |
| automatic wing lock | √ irreversible actuator |
| manual release system | √ by triangular key |

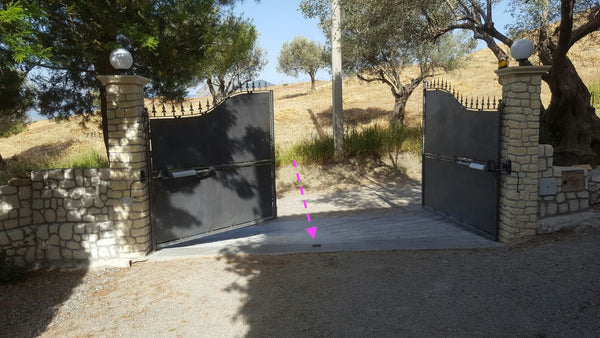

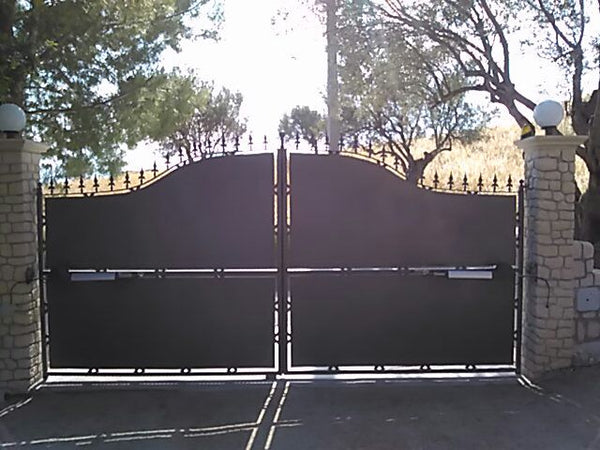

| Compatible with gate opening towards outside | √ |
NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model SW400T in "FC" version are featured with on-board mechanical limits for the open wing position.
CTH42 ELECTRONIC BOARD TECHNICAL DATA
|
|
|
| toroidal transformer's Watts | 105W |
| protection fuse | √10AF |
| transformer protection fuse | 0,8AT (1,2AT for 110V transformer) |
| use on single or double wing gate | √ |
| output services | 12V |
| stand-by power consumption | 12mA |
| radio receiver | 2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening) |
| remote controls channels storage capacity | 10 codes |
| radio transmission protocol | DUCATI rolling code |
| radio frequency | 433,92MHz |
| remote control automatic learning | √ |
| On board antenna | √ |
| external antenna input | √ |
| automatic closure working mode | √ with adjustable pause time up to 100 sec. |
| step by step working | √ one pulse to open; one pulse to close |
| motor power adjustment | √ by potentiometer |
| Obstacle detection safety system(DUCO SAFE) | obstacle detection |
| In compliance with EU-CE norms | √ |
| timerized courtesy light output | √ max 10W 12V lamp |
| flashing light output | √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening |
| electric lock output | √ ac(warning the electric lock is incompatible with/while the board is powered by back-up battery) |
| safety beam-photocells input (NC contact) | √ NC normally closed contact |
| A full cycle START input(NO contact) | √ |
| pedestrian cycle START input ( N contact) | √ |
| output for optional additional back-up battery charge management & module CMBAT | √ |
CLICK HERE to download the SW400T actuator's installation diagram
CLICK HERE to download the CTH42 electronic board wiring diagram
CLICK HERE to download full swing gate openers installation manual
