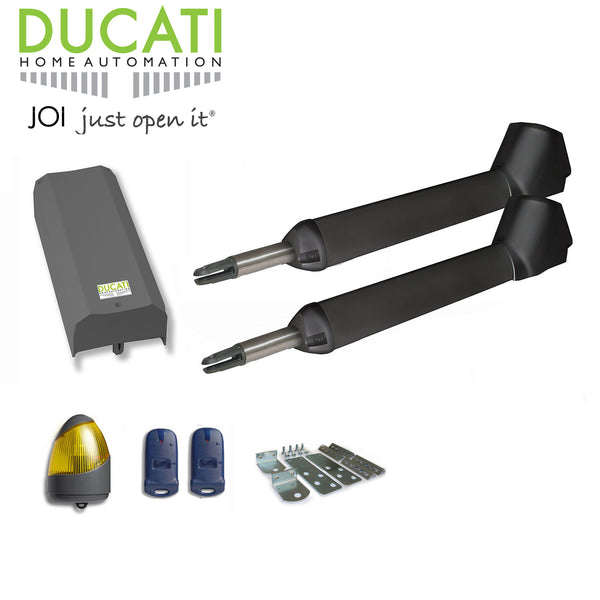

SW3000 T

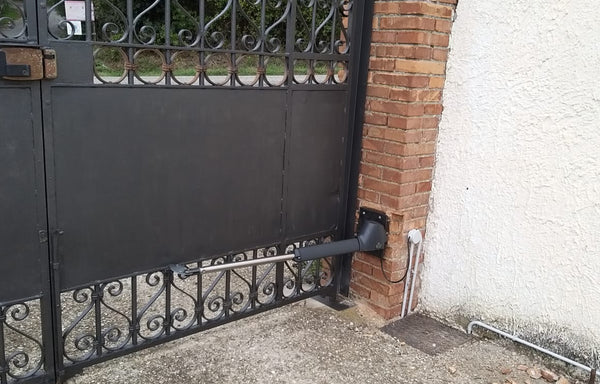

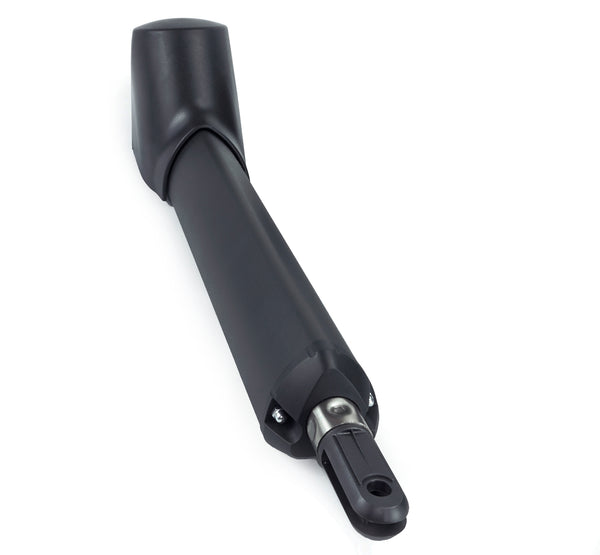

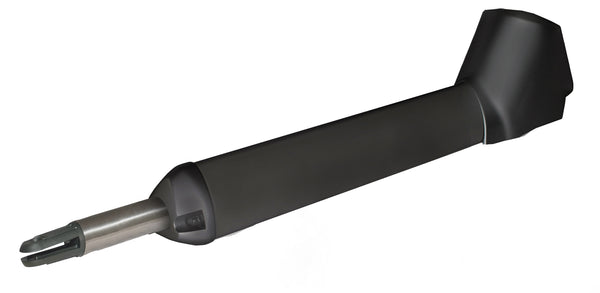

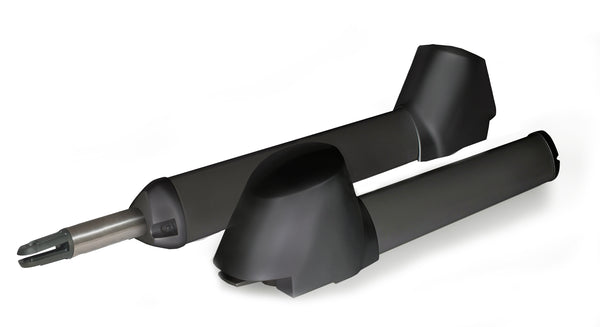

• 2 x SW400T - telescopic 400mm stroke  12V actuators

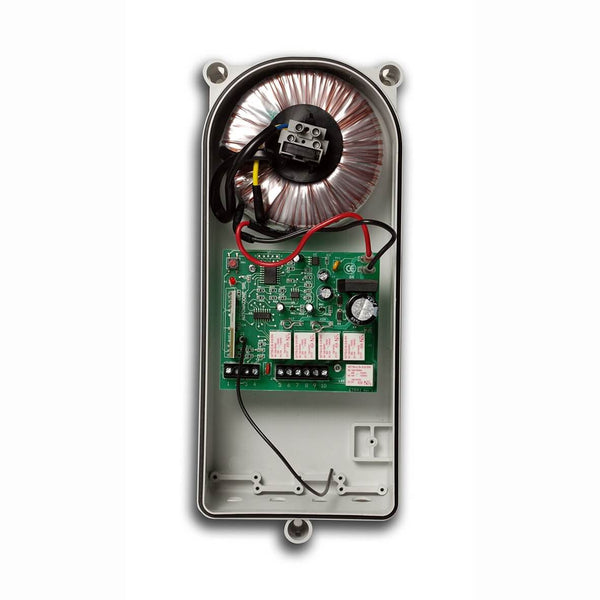

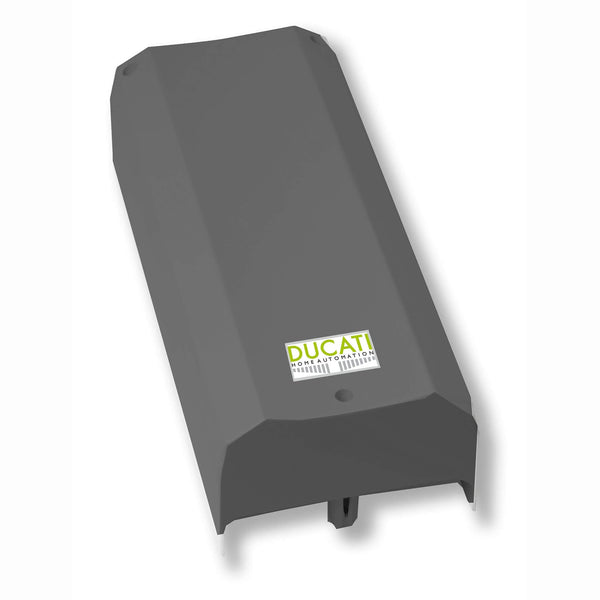

• 1 x Large control box with electronic board CTH41+ transformer

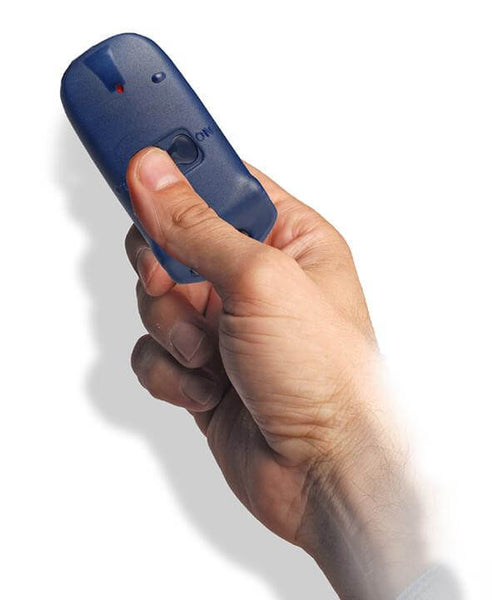

• 2 x  2 buttons 433 Mhz rolling code transmitters

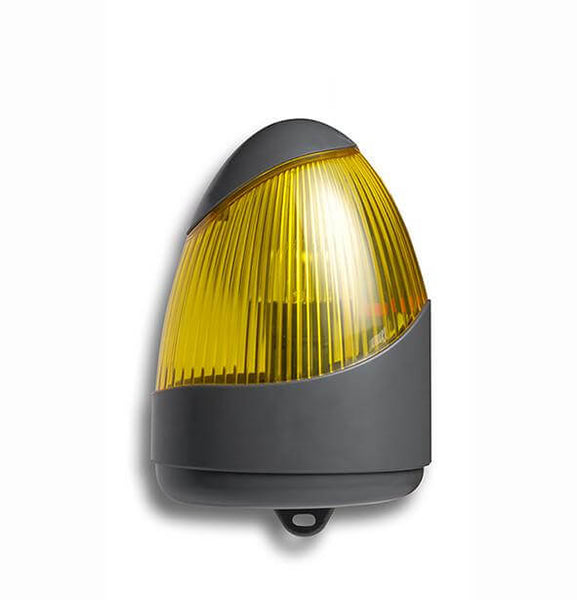

• 1 x SW7500 - blinking light 12V
• 1 set of actuators fixing plates

AUTO-LOCK TECHNOLOGY

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

DUCO SAFE

Obstacle detection safety system guarantees maximal safety of use to your family

• Telescopic actuators ensures  long lasting performances and less stess on gate hinges
• Ideal for a safe, quick and easy installation: the system works in DC current and is electrocution risk-free.
• 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close (30 sec. pause time)
• Easy  self-storing  of the remotes controls by pushing one button
• Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
• The gate is automatically locked in closed position (irreversibile system).

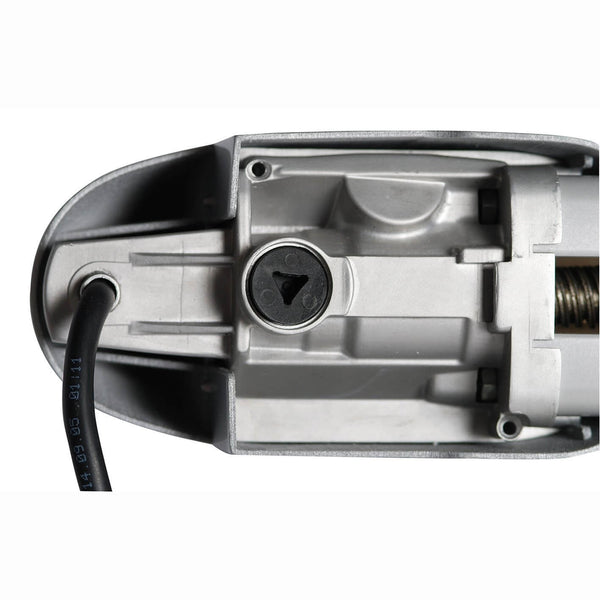

• Manual release system by universal triangular key
• Safety is ensured by a sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)

• CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

NOTE: the actuator will stop by amperometric detection system: it therefore requires; mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model SW400T in "FC" version are featured with on-board mechanical limits for the open wing position (considering gate that opens towards inside the property).

CLICK HERE to download the SW400T actuator's installation diagram

CLICK HERE  to download the CTH41 electronic board wiring diagram

CLICK HERE to download full swing gate openers installation manual
