HC812-400

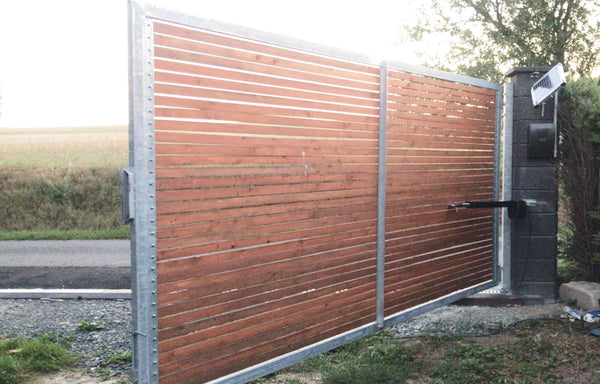

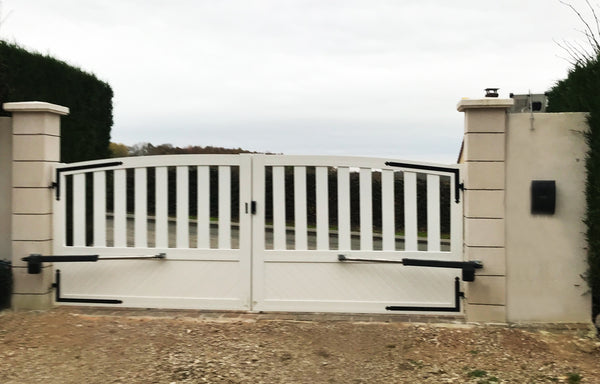

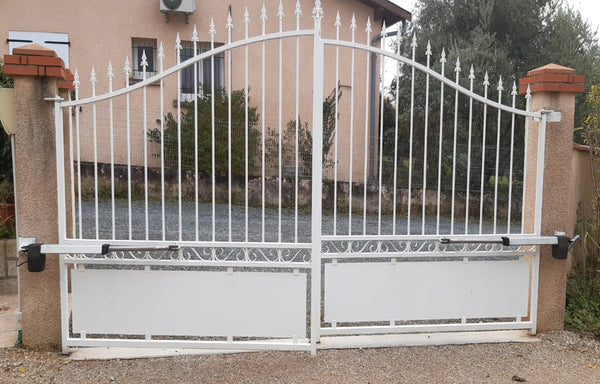

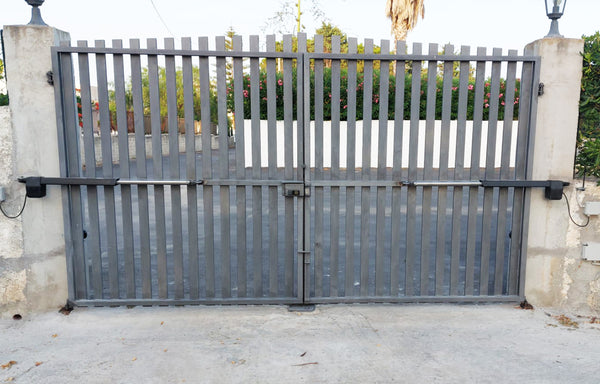

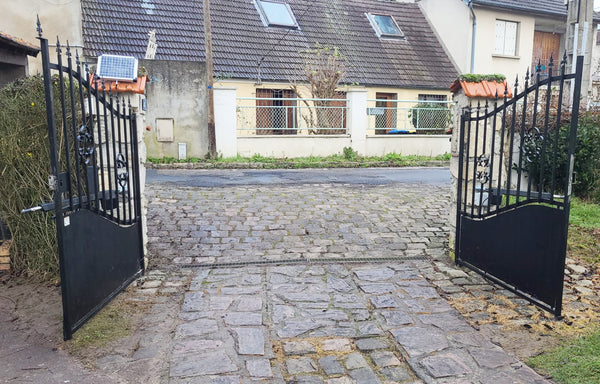

Ideal for double swing gates up to 2 x 3,5m/11,4ft each wing

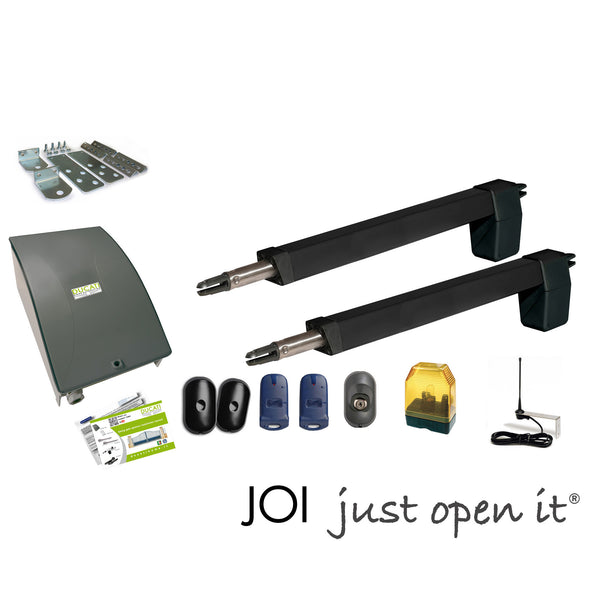

Ducati's classic vintage design gate opener featuring:

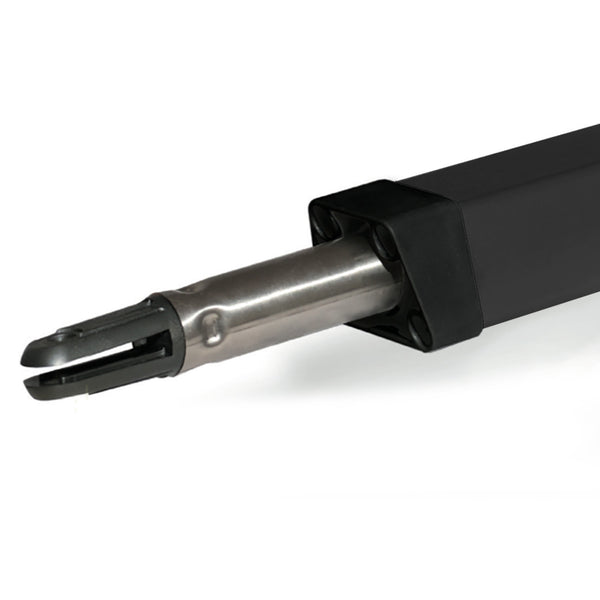

This classic DUCATI "vintage" design gate operator features several advanced options combined with long 400mm stroke telescopic actuators for greatest strength and less mechanical stress of the system. The perfect heavy duty gate opener.

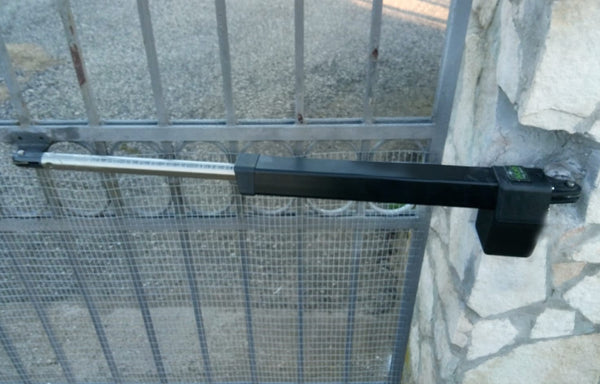

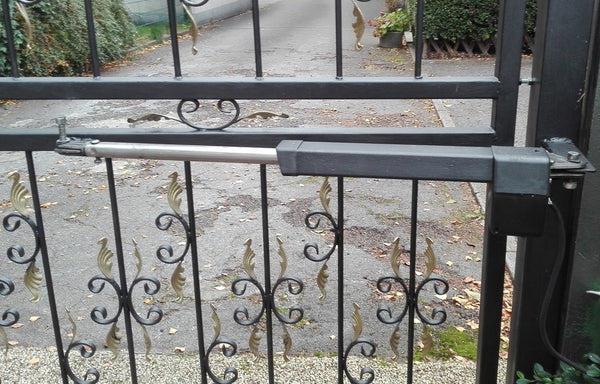

- 2x HC412 - 400mm stroke 12V telescopic electromecanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq

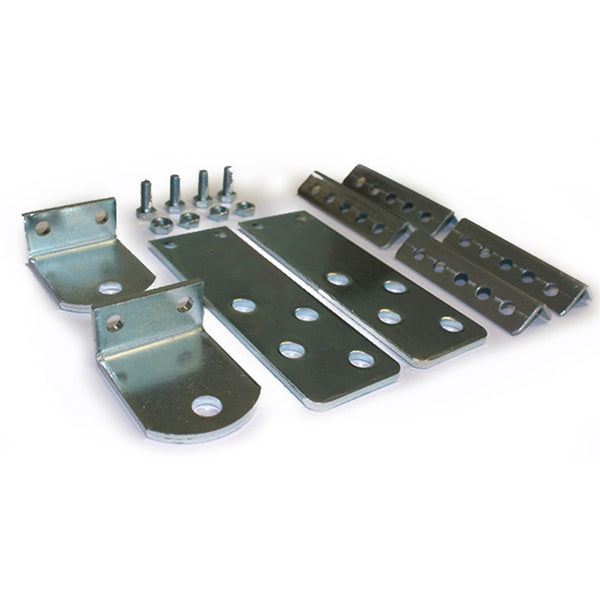

- set of actuator's fixing brackets

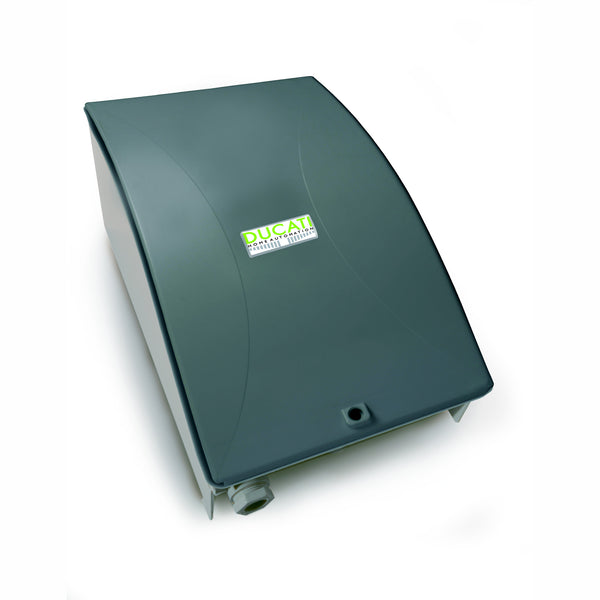

- 1x 7855Rol - large control box with electronic board CTH42, toroidal transformer, integrated radio receiver

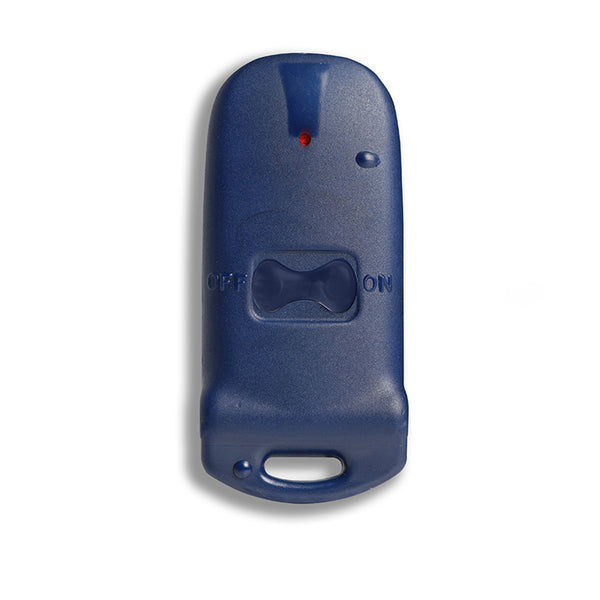

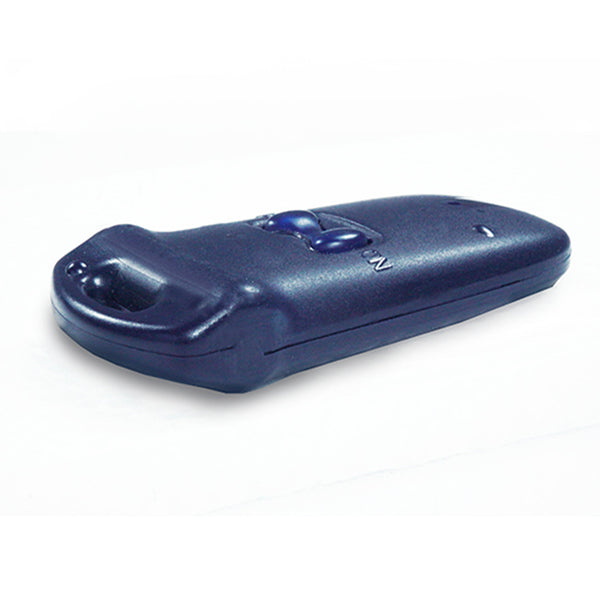

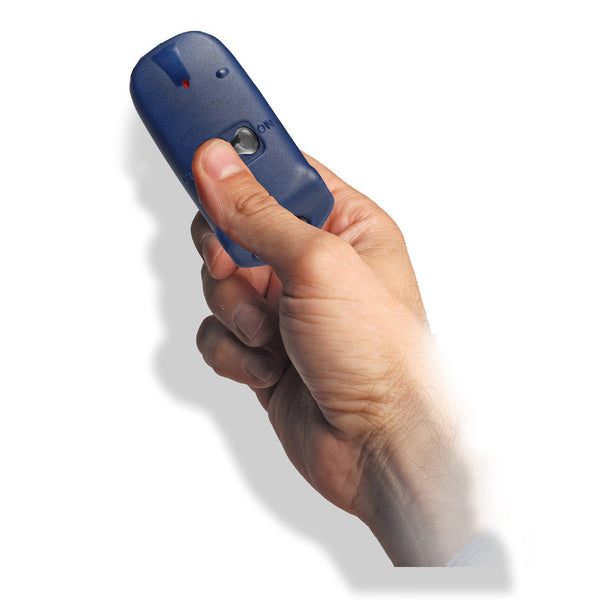

- 2x 6203Roll - 2 buttons 433,92 MHz rolling coded radio transmitters

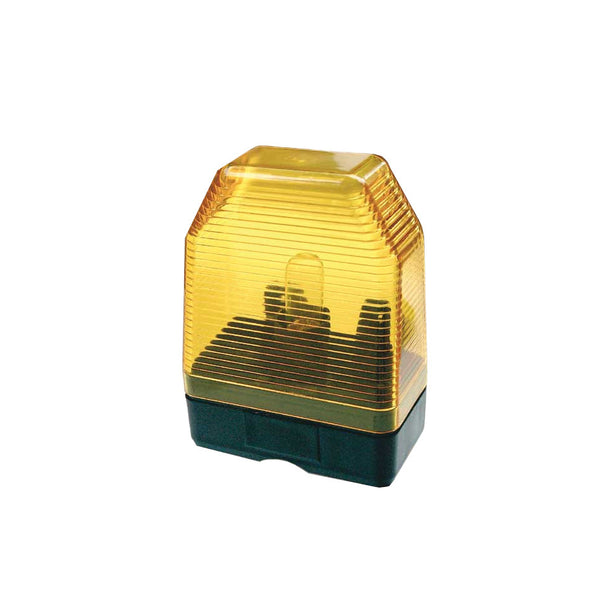

- 1x HC7500 - blinking light 12V

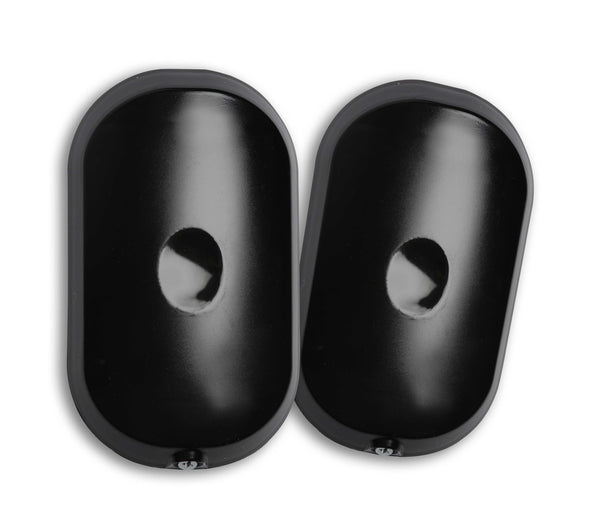

- 1 pair of photocells ( safety beam)

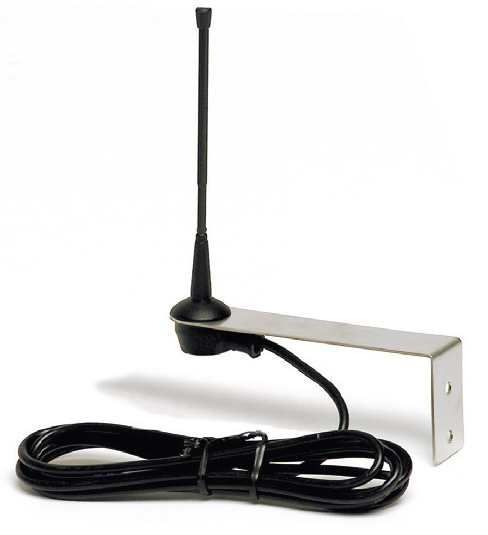

- 1 external antenna

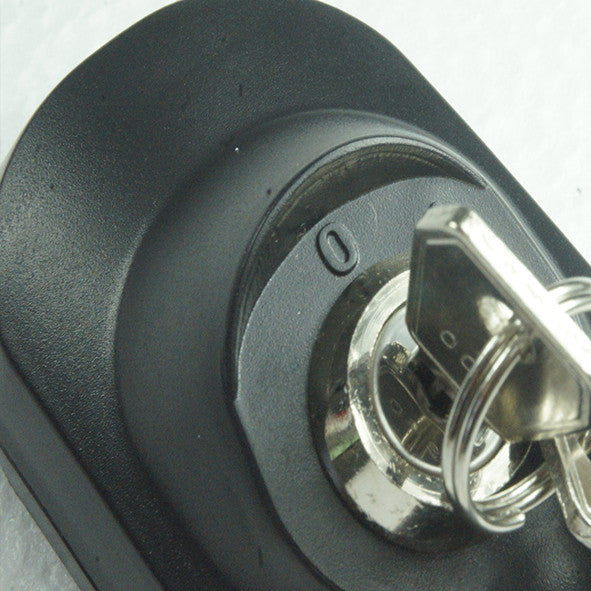

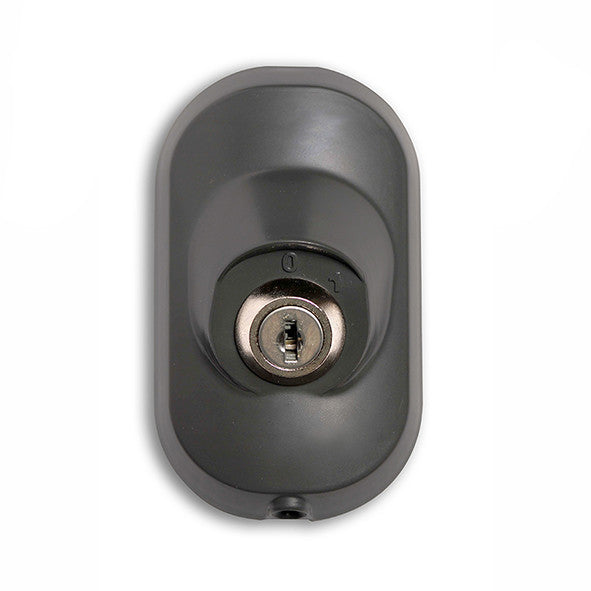

- 1x SW5000 - key switch
- 1x key for manual emergency release
- 1x instruction manual
obstacle detection safety system guarantees maximal safety of use to your family
SELF LOCK TECHNOLOGY

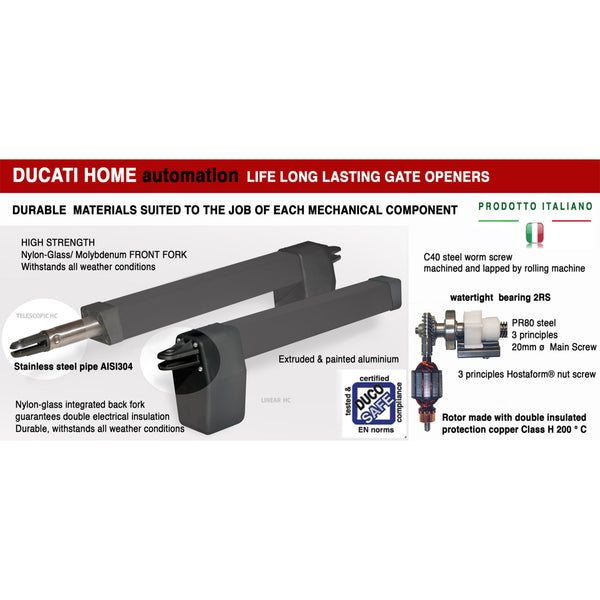

The self-locking properties of the spindle increase the protection against a dangerous and unauthorised “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation
- Ideal for a safe, quick and easy installation: the system works in DC current and is electrocution risk-free.
- Possibility of connecting an external timed courtesy light (example: garden light)
- 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
- Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
- Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
- Easy self-storing of the remotes controls by pushing one button
- Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy: just need to rotate potentiometer related to each motor.
- Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
- Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
- After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
- The gate is automatically locked in closed position (irreversibile system).
- Electro-lock is not needed, but recommended for wing longer than 2,8m each. This opener is compatible with ac 12V electric-lock ( WARNING: electrolock is not compatible in case the opener is powered by back-up battery)

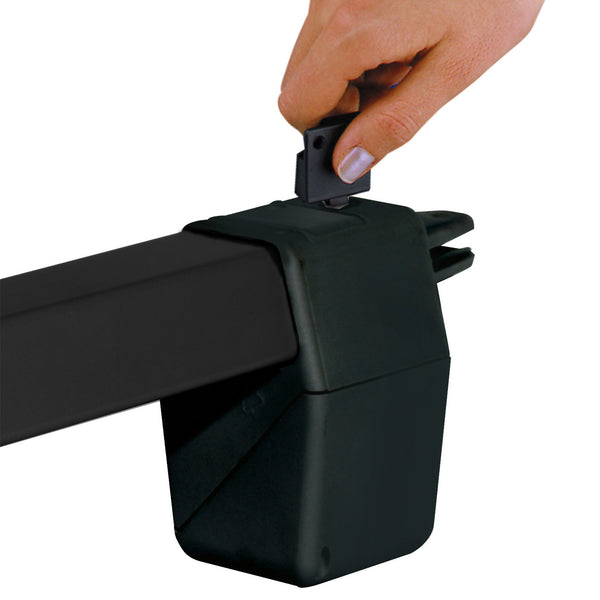

- Manual release system by universal triangular key
- Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
- CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request

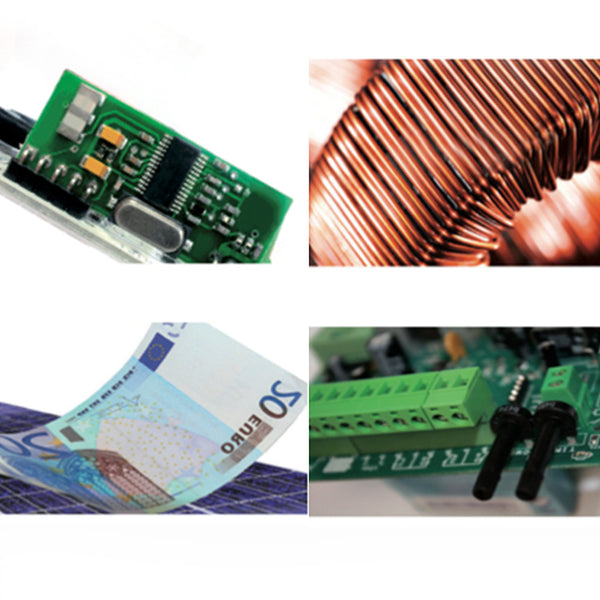

- Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
- Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.
ACTUATOR TECHNICAL DATA

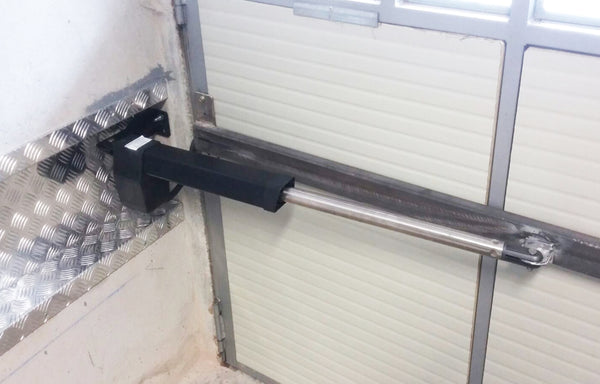

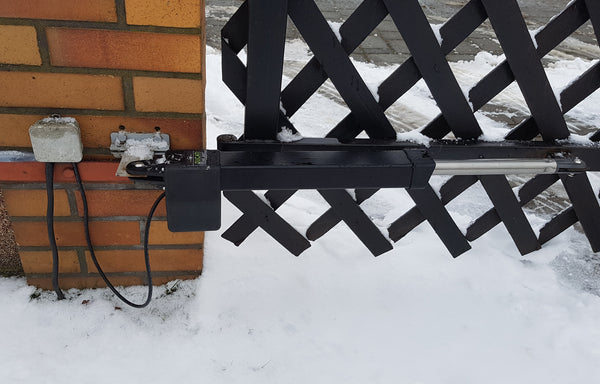

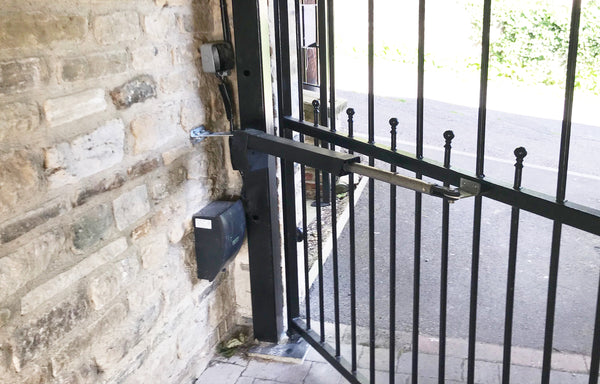

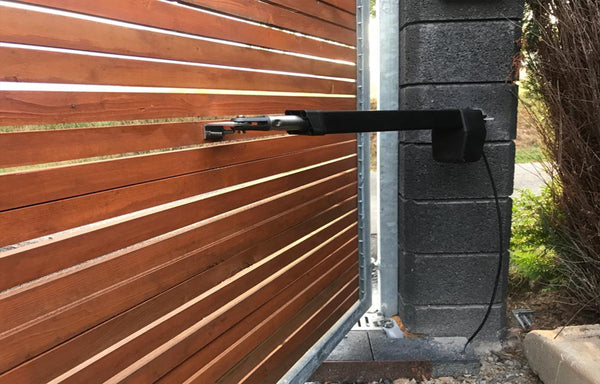

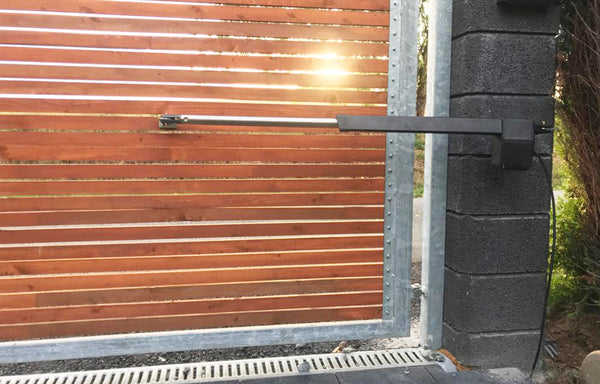

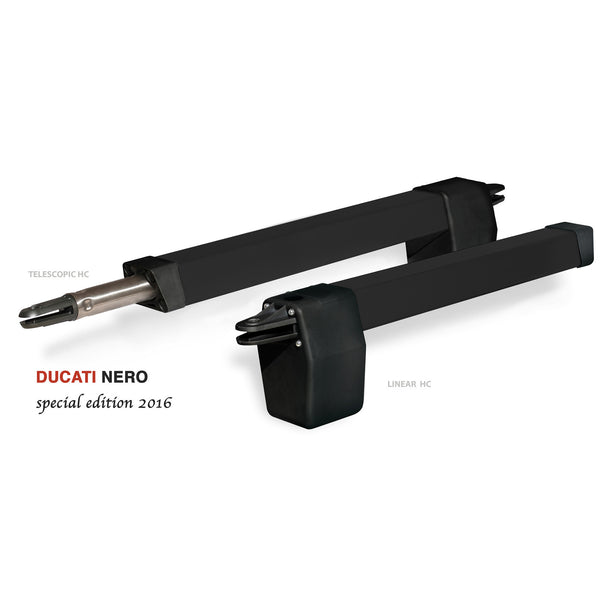

ELECROMECHANICAL TELESCOPIC ACTUATOR HC412
|
|
|
| dc motor | 60W |
| max pushing & power | 1200N |
| Stroke | 400mm |
| motor speed | 1,5 cm/sec |
| telescopic actuator | √ |
| working cycles limit | continuous use/ no limits |
| working temperature | -20°C/+50°C |
| max wing length |
3,5m/11,4ft each leaf |
| max.wing weight |
350kg/700lb each leaf |
| max. opening angle |
137° |
| automatic wing lock | √ irreversible actuator |
| manual release system | √ by triangular key |
| Compatible with gate opening towards outside | √ |
NOTE: the actuator will stop by amperometric detection system: it therefore requires mechanical stop limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC412 in "FC" version are featured with on-board mechanical limits for the open wing position.

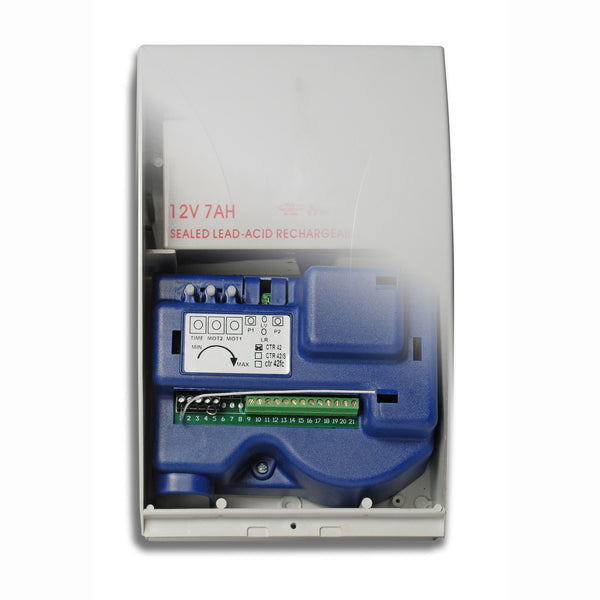

CTH42 ELECTRONIC BOARD TECHNICAL DATA
|
|
|
| toroidal transformer's Watts | 105W |
| protection fuse | √10AF |
| transformer protection fuse | 0,8AT (1,2AT for 110V transformer) |
| use on single or double wing gate | √ |
| output services | 12V |
| stand-by power consumption | 12mA |
| radio receiver | 2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening) |
| remote controls channels storage capacity | 10 codes |
| radio transmission protocol | DUCATI rolling code |
| radio frequency | 433,92MHz |
| remote control automatic learning | √ |
| On board antenna | √ |
| external antenna input | √ |
| automatic closure working mode | √ with adjustable pause time up to 100 sec. |
| step by step working | √ one pulse to open; one pulse to close |
| motor power adjustment | √ by potentiometer |
| Obstacle detection safety system(DUCO SAFE) | obstacle detection |
| In compliance with EU-CE norms | √ |
| timerized courtesy light output | √ max 10W 12V lamp |
| flashing light output | √ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening |
| electric lock output | √ ac(warning the electric lock is incompatible with/while the board is powered by back-up battery) |
| safety beam-photocells input (NC contact) | √ NC normally closed contact |
| A full cycle START input(NO contact) | √ |
| pedestrian cycle START input ( N contact) | √ |
| output for optional additional back-up battery charge management & module CMBAT | √ |
CLICK HERE to download the general instruction manual
HC412 actuator installation diagram
CTH42 Manual electronic board
6203Roll remote control instructions
Watch the CTH42 installation video
