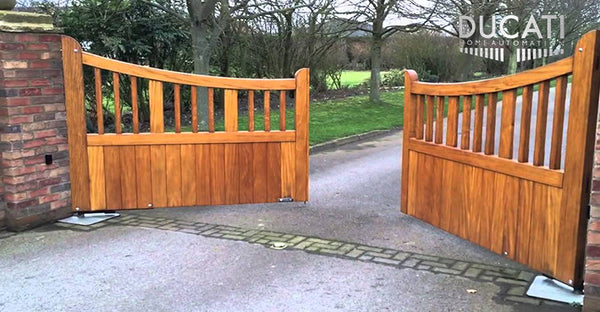

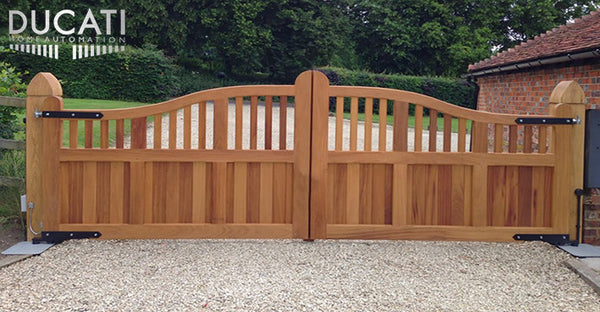

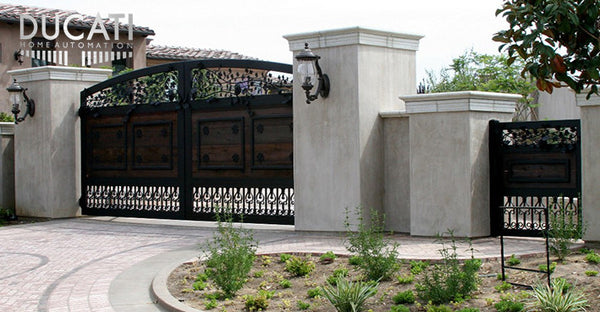

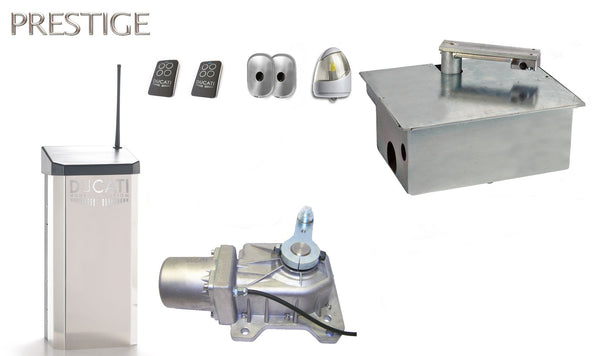

GEO 1048B Mono

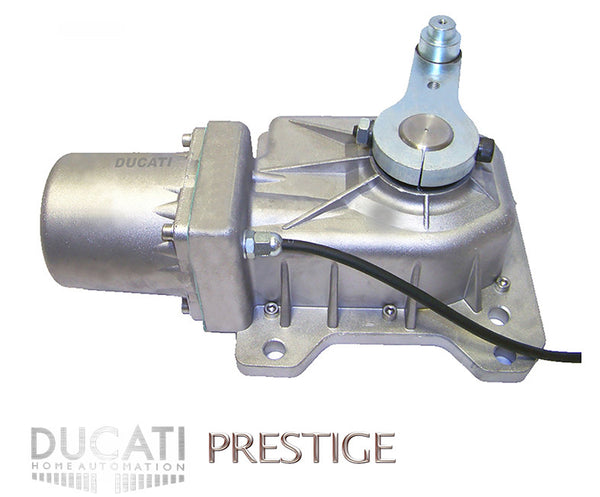

• 1x GEO MOT 24V gearmotor

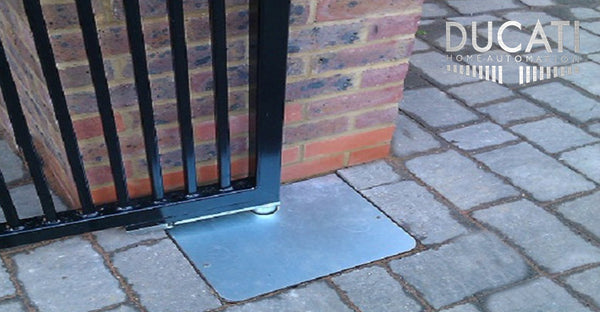

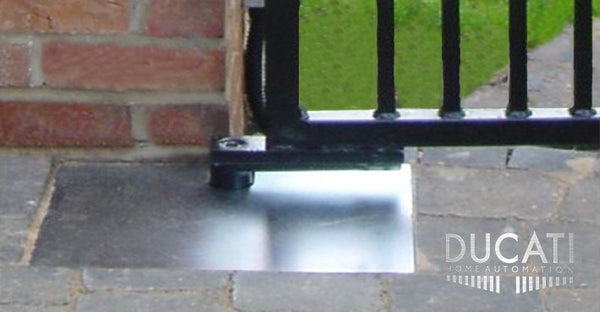

• 1x GEO BOX Galvanized foundation box
• set of fixing brackets opening angle 90°

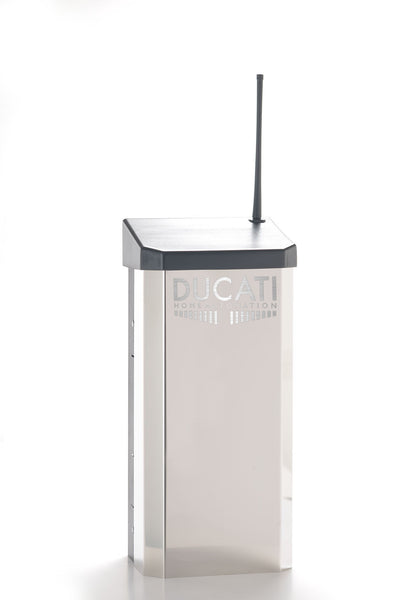

• 1x I-BOX 9048/24 large stainless steel control box with electronic board CTH48/24V, toroidal transformer, integrated radio receiver, antenna

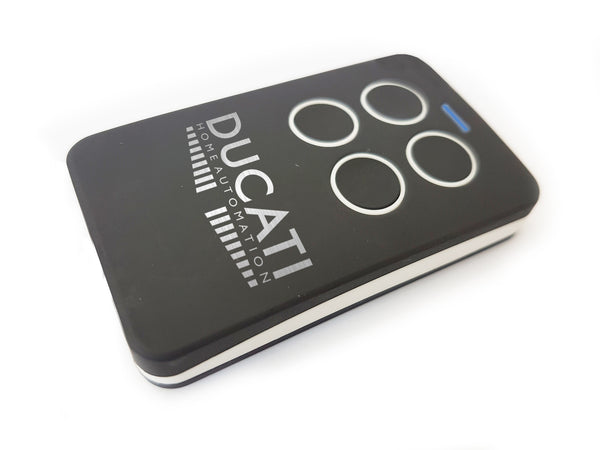

• 2x 6203Roll - 2 buttons 433,92 Mhz  rolling code radio transmitters

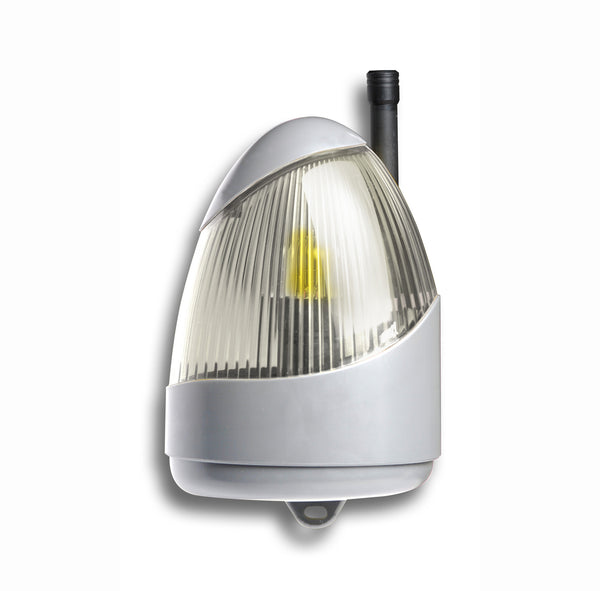

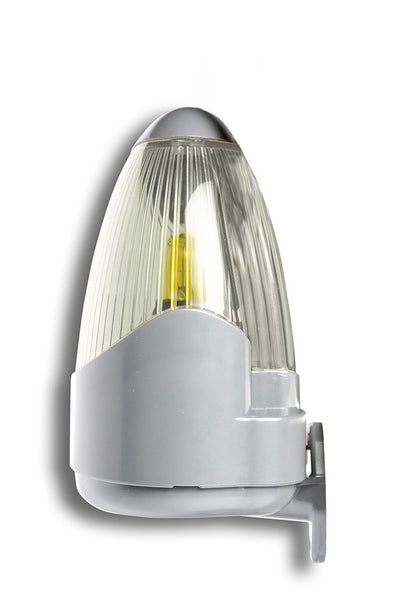

• 1x FLASH7500 - blinking light

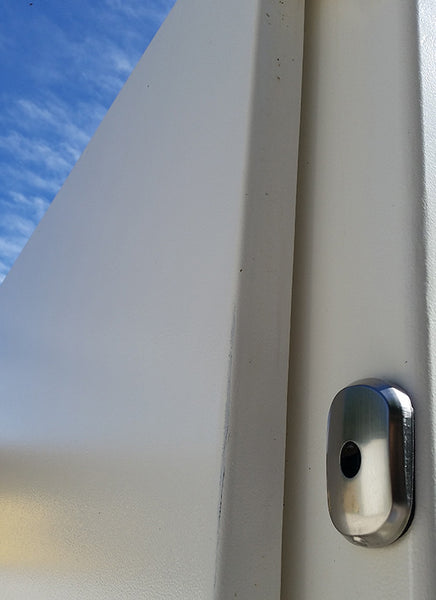

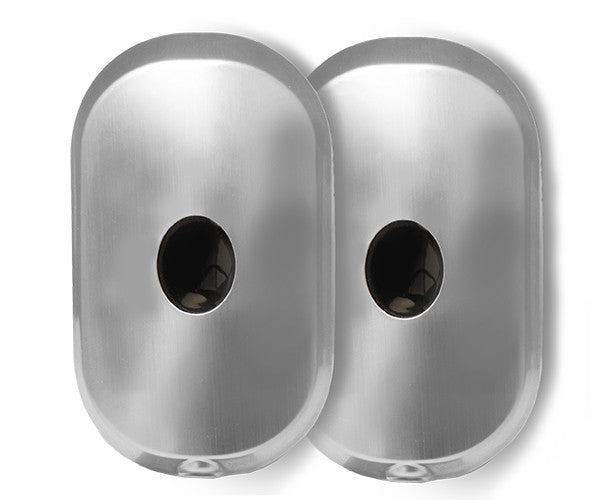

• 1x pair of LASER 7120 ( stainlessteel photocells)
• 1x key for manual emergency release
• 1x instruction manual
• 1x warning sign

• Double speed with SOFT STOP
• SOFT STOP  adjustment: you can postpose/anticipate the slowdown phase
• Obstacle detection sensitivity adjustment
• Inverse movement by obstacle detection while closing
• Control unit with integrated battery housing compartment
• Integrated battery charger on board: just ready for connection to 2 x 12V emergency batteries in series connected. In case of power failure works autonomously up to 3 days
• Integrated solar panel management: the card is a just ready to operate autonomously powered by solar panel. NOTE: add  2 x 12V batteries in series connected + 24V min. 20W solar panel. No extra module needed
• Low consumption technology: only 0,14W stand-by consumption! Protect the environment, reduces waste of energy and  ensures long lasting autonomy with battery/solar panel use
• Automatic closing with adjustable time (you can vary the pause time from 1 to 100 seconds) or step-by-step ( push to open/ push to close)
• Adjustable motor power/ obstacle detection sensivity. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.
• Status Warning light output: an external wired LED light can be connected to indicate if the gate is open, closed, closing or opening
• Ideal for a safe, quick and easy  installation: the system is electrocution risk-free.
• heavy duty opener: can work in continuous cycles  without overheating
• Adjustment of the time lag between the two doors
• Pedestrian opening (1 partial opening the wing to allow the pedestrian crossing only) can be controlled by remote control or wired control.
• Possibility of connecting an external timed courtesy light (example: garden light)
• The gate is  automatically locked in closed position ( irreversibile system).
• Electro-lock is not needed, but recommended for wing longer than 2,8m each. Compatible with 24V electric-lock ( Booster required)
• Made in Italy: All components are manufactured in the company to warranty high quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries
• Easy  self-storing  of the remotes controls by pushing one button
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

• Manual release system by universal triangular key

ELECROMECHANICAL UDERGROUND MOTOR GEO 548

NOTE: the motor will stop by amperometric detection system: it therefore requires mechanical limits to be installed on the floor to stop the gate wing in the open and closed position.To avoid tmechanical limits to be fixed to the ground consider adding the GEO-FC integrated limits witch is an optional accessory to be adeded to this package. .

CTH48 ELECTRONIC BOARD TECHNICAL DATA

(solar panel & battery management on board)

CLICK HERE to download the full instruction manual

ELECTRONIC BOARD wiring diagram:  CTH48 to view installation manual
