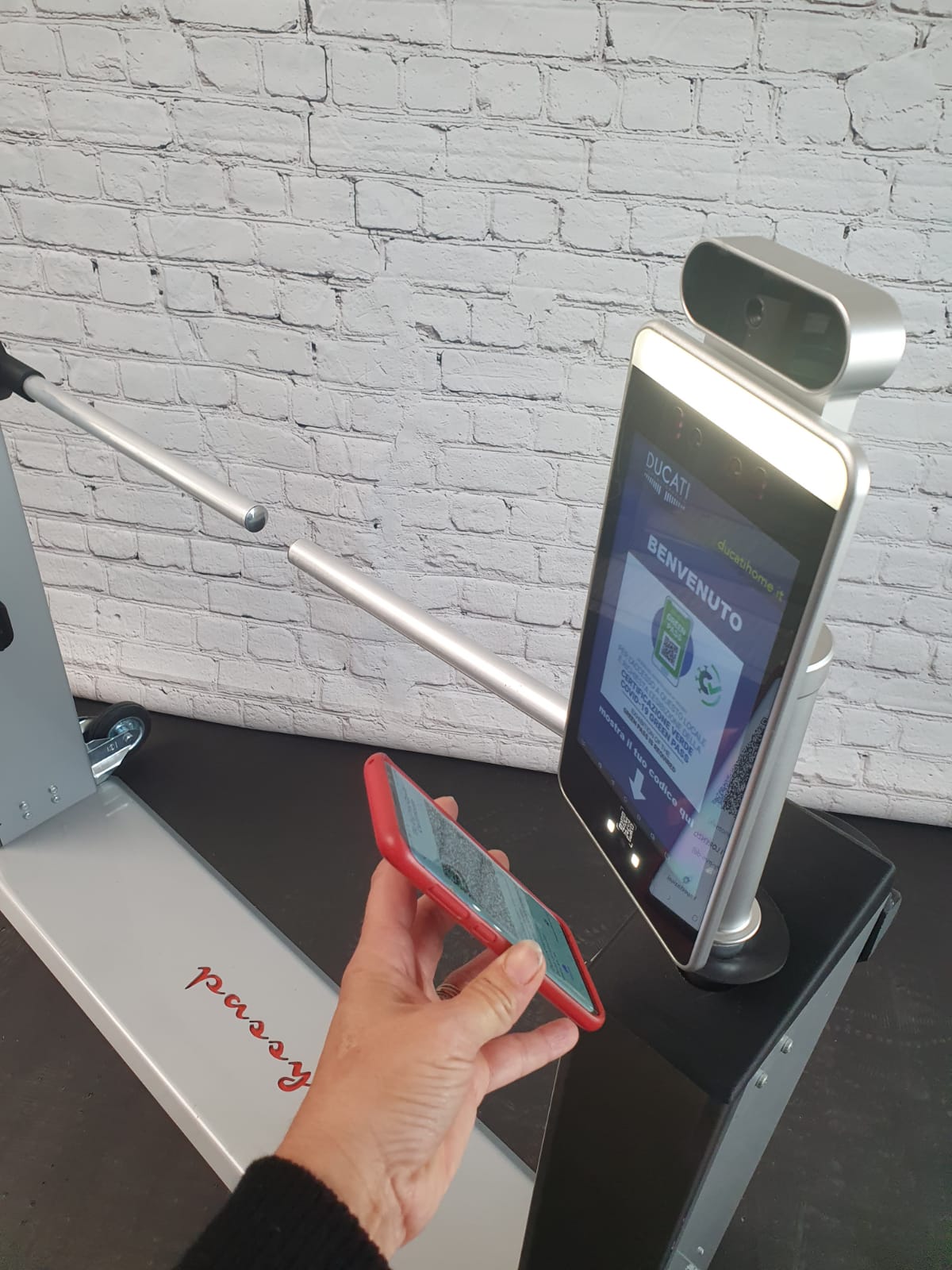

Passy 300 GREEN-PASS SCAN

A unique automatic device that scans the EU Green Pass QR Code to allow access through the stand-alone pedestrian barriers.

Passy is a  stand-alone ready to be used and movable device that enables an automatic entrance control

The barrier opens by verifying the EU Green Pass QR Code validity

The ideal system for managing access in restaurants, offices, bars, fitness centers, cinema, theater, and any place where Green Pass Health certificate / and or Temperature detection and /or Mark wear is required to access.

Having an autonomous Green-pass PASSY access control system promptly is the simple and affordable solution for everyone to comply with the new regulations in force without having to bear the cost of an employee dedicated to manual access control.

The elegant structure, compact dimensions, and stainless steel finishes combined with the efficiency of Ducati gear motors make it a product with an unparalleled style.

Minimum size and maximum versatility

• Passy is supplied pre-assembled, immediately ready for use without any need for a system, and offers the maximum versatility of use over time.

• The system is self-supporting. It can be positioned and fixed permanently to the floor using the provided log bolts but can also be used without permanently fixing it to the ground.

• A system with integrated wheels allows it to be moved and transportable according to your needs and without constraints.

• The footprint of only 32 cm in depth allows it to be conveniently positioned at the entrance to the shops, also positioning it in front of the main entrance.

An autonomous system with low energy consumption

• Passy comes with a special connector and cable to power it comfortably from an electrical outlet. No work is required to set up a special electrical system.

• Passy is equipped with an energy-saving system that allows its autonomous use even where it is not possible to supply it with the electricity grid: supplied with 12A 12V rechargeable Back-up batteries, the system can operate in complete autonomy for one day ( 500cycles)  and then recharge the batteries through the supplied power supply.

Passy 300 SCAN  works by:

• Health certificate (Green Pass) control
• Body temperature detector

• Advanced Face ID control: body temperature detection + Face mask detection that allows access only if the user wears a mask. This version is also possible to allow access only with biometric recognition of the face of authorized users.
• Ducati Rolling code radio controls

An autonomous system with low energy consumption

• Passy comes with a special connector and cable to power it comfortably from an electrical outlet. No work is required to set up a special electrical system.

• Passy can be also controlled by:


• Ducati Rolling code radio controls
• Ducati Radio Keypad (1 or 4 channels)*
• Wired commands as push buttons*
• Emergency wired button*
• Emergency button wireless radio transmission system*
• RFID cards*
• Phone coll with GSM Module or GSM Intercom*
• App on Smartphones with Wi-Fi 6090 Module*
• Motion detector sensor*

      * =optional accessories to be added to the product

Safety

• The system is equipped with an anti-pressure safety device on obstacles with amperometric detection. If you hit the barriers during access, they reverse the movement and reopen.

• A system of infrared light safety sensors guarantees protection against shocks during the user's transit: if the photocells detect the persistence of the person's presence, they leave the passage accessible without closing the barriers, until the user has passed. This system guarantees the comfort and safety of passage for the elderly or with motor disabilities.

• Manual safety release that can be operated easily in an emergency

Bi-directionality of passage

• The barrier system limits access control in the direction of entry, but also allows automatic transit in the exit direction by adding an optional accessory as for example: -exit push button or motion detector sensor. With this last optional device installed on the bottom backside of the barrier, once the person approaches the barriers will open.
